Cnc 1325 5 Axis Table Move Linkage Router Cutting Engraving Machine

Cnc 1325 5 Axis Table Move Linkage Router Cutting Engraving Machine

after-sales service：

1. Overseas after-sales service；

2. 24 hours online service guidance；

3. Training on the use of machines

Foam mold engraving machine is a high efficiency and precision engraving equipment, mainly used in the production of lightweight foam products mold and products.

Quantity:
Availability:





Inquire Add to Basket

Model:
BS2513-5S
Brand:
CHENcan

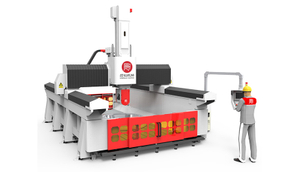

Product Description

Ram, Left & Right Columns, Beams and woke table are welded with steel sheet, work table with T-Slot structure; All main mechanical parts are tempered, which has good shock absorption and thermal stability.

2. The high-precision 5 axis CNC control system is characterized by high precision, diversified operations, intelligent processing and cross-border protection function, which can prevent mechanical collision caused by over travel during operation.

3. The five-axis box body is made of high-strength cast iron, Original imported high-torque & high-precision harmonic/RV reducer, Imported high-torque spindle. These all ensure the accuracy and stability of processing, and meanwhile greatly improve the processing efficiency.

4. Spindle adopts HSK taper hole clamping method with strong tool locking force, high precision stability. Especially suitable for high-speed machining occasions, effectively improving machining accuracy and smoothness, and shortly reduce the machining time.

5. Automatic carousel type tool change magazine with 8 tool positions, ensure stable and reliable tool exchange.

6. X, Y, and Z are driven by high-precision & pre-stretched ball screws, which are suitable for high-precision and powerful cutting of workpieces.

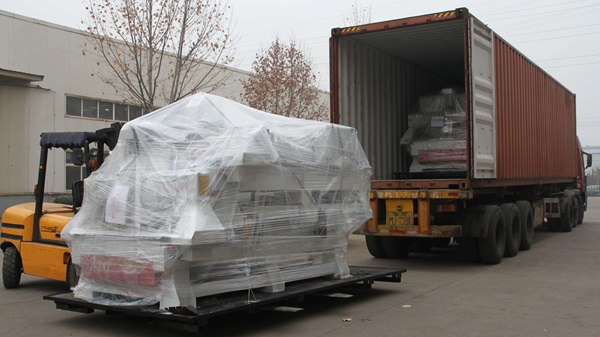

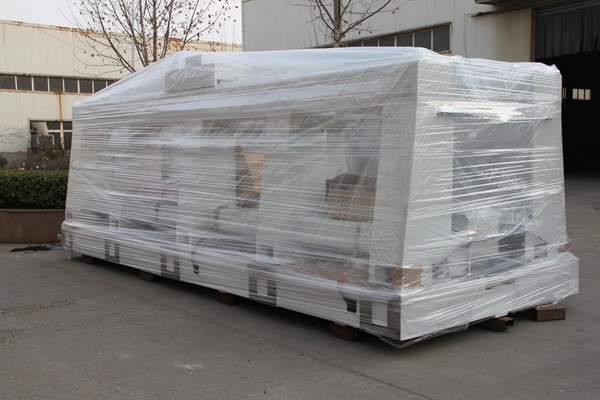

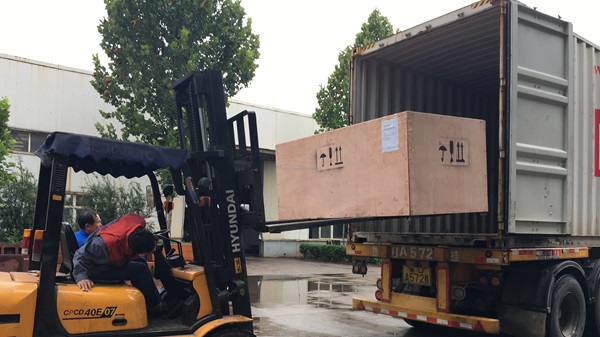

Plastic cover and strong iron pallet,Load into container,then delivery by sea.

Application Video

Production Process

Welding, Machining

sandblasting

Assembly machines, testing equipment

| Data Sheet

Stroke Size(mm)	X:3450 Y:2150 Z：1200	Spindle	Italy HITECO 15kw Spindle
Working Size（mm)	X:2500 Y:1300 Z:800	Spindle Speed	24000rpm/min
Working Size（mm)	X:2500 Y:1300 Z:800	Spindle Cone	HSK 63F
A Axis	±120°	Drive Type	XYZ all adopt high precision ball screws
C Axis	±360°	Drive Model	AC Servo Drive
Max Working Speed X/Y/Z(m/min)	30/30/10	Work Table Type	Steel Table or Vacuum Table
Max Rapid Speed X/Y/Z(m/min)	60/60/20	Air Pressure(kgf/cm²）	0.6~0.7
Positioning Accuracy X/Y/Z(mm/m)	0.025/0.025/0.025	Total Power(KVA)	38
Repeatability X/Y/Z(mm/m)	0.01/0.01/0.01	Gross Weight(T)	10
Applicable materials	Wood/little aluminum	Form of structure	movable type
5-axis head	L-type with encoder and air brake	control system	Huazhong
servo drive	Huazhong	screwdriver	GTEN Taiwan
rails	JapanTHK	speed reducer	APEX
