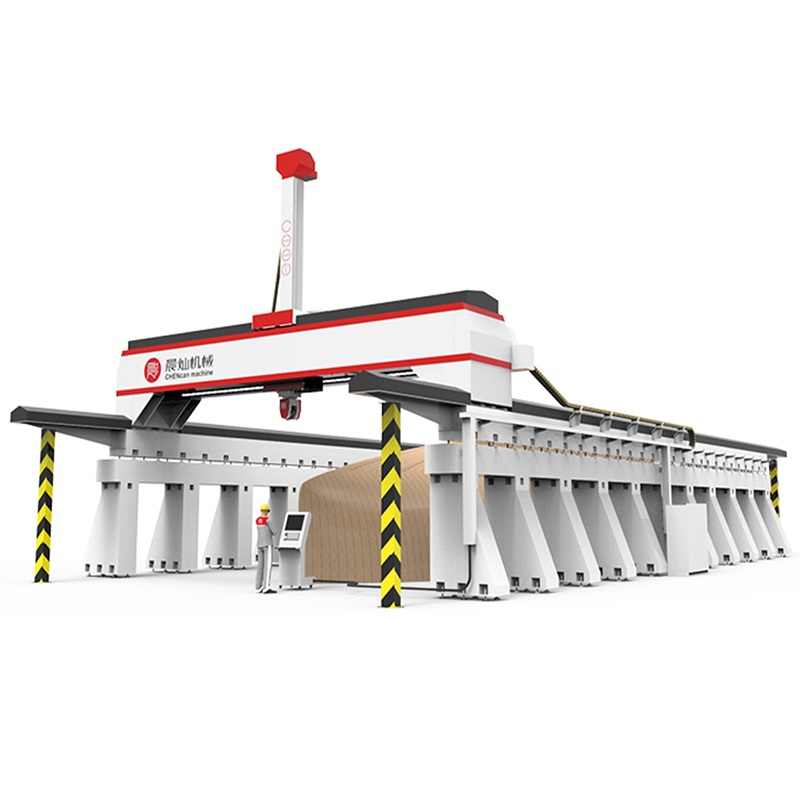

China Chencan Boat Mould 5 Axis Cnc Machine Wood Foam Milling Router for Car Wc Toilet mould

China Chencan Boat Mould 5 Axis Cnc Machine Wood Foam Milling Router for Car Wc Toilet mould

Control System: Huzhong
Without Work Table
Servo Drive: Huzhong Servo
Big Size Taiwan Linear Guide Rail
Spindle Cooling System
Minimum order quantity: one unit
after-sales service：Overseas after-sales service；24 hours online service guidance；Training on the use of machines

Quantity:
Availability:





Inquire Add to Basket

Model:
SF35120-5S
Brand:
CHENcan

Product Description

| Product Description

SF35120-5S

1.All main mechanical parts are tempered, which has good shock absorption and thermal stability.

2.The high-end 5 aixs CNC control system is characterized by high precision, diversified operations, intelligent processing and cross-border protection function, which can prevent mechanical collision caused by over travel during operation.

3.The five-axis box body is made of high-strength cast iron, Original imported high-torque & high-precision harmonic/RV reducer, Imported high-torque spindle. These all ensure the accuracy and stability of processing, and meanwhile greatly improve the processing efficiency.

4.Spindle adopts HSK taper hole clamping method with strong tool locking force, high precision stability. Especially suitable for high-speed machining occasions, effectively improving machining accuracy and smoothness, and shortly reduce the machining time.

5.Automatic linear type tool change magazine with 8 tool positions, ensure stable and reliable tool exchange.

Customized service, customers can choose models according to the size of the model.

Product Parameters

Stroke Size (mm)	X: 12000 Y: 3500 Z: 2000
5 Axis Working Size(mm)	X: 11000 Y: 2500 Z: 1600
Spindle	Italy HITECO 15Kw Spindle
Spindle Speed	24000rpm/min
Spindle Cone	HSK 63F
A Axis	±120°
C Axis	±360°
Drive Type	XY: Incline Rack & Pinion;Z all adopt high precision ball screws
Work Model	AC Servo Drive
Work Table Type	No
Max Working Speed X/Y/Z(m/min)	40/40/10
Max Rapid Speed X/Y/Z(m/min)	60/60/20
Positioning Accuracy X/Y/Z (mm/m)	0.03/0.03/0.03
Repeatability X/Y/Z (mm/m)	0.02/0.02/0.02
Air Pressure (kgf/cm2)	0.6~0.7
Total Power (KVA)	42
Gross Weight (T)	30

Product Applications

process material:

Substitute Wood, EPS, Foam, ABS, Aluminum Alloy, Acrylic, Wood, Fiberglass, Rubber, Plastic, Resin, Carbon, Fiber Glass Fiber, Gypsum, Sludge, Polymer Composites and Non-metallic carbonized mixed materials.

Application Industry:

(1).Sanitary Ware Industry:Bathtubs, Basins, Toilets, etc

(2).Wind Power Industry:Blade Mold, Nacelle Cover Mold, etc

(3).Automotive and Marine Industry:Car Models, Ship Models, Bumpers, Sheet Metal, etc

(4).New energy industry:New Energy Battery Box

(5).Aerospace & Mold industry & Sculpture Industry:Military Confidential Products, Automotive Interiors, Medical Appliances, Casting Molds, etc.
