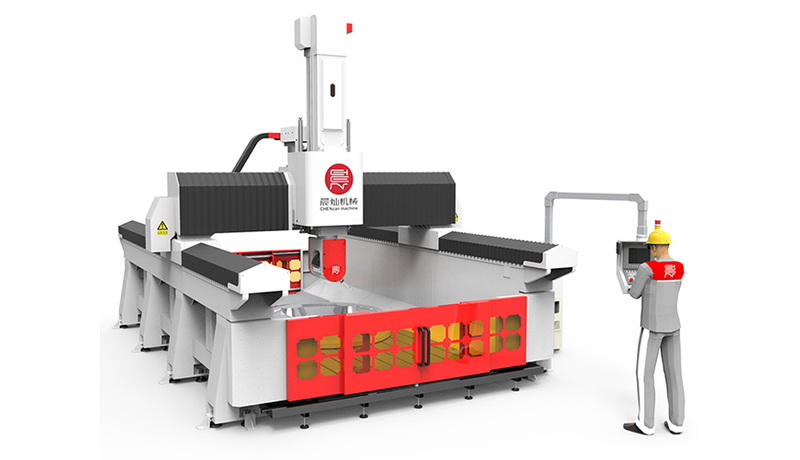

New Energy Wind Power Blade Fan Turbine Mould Plug Mold Pattern Milling Cutting Five Axis Cnc Machine 5axis Cnc Router

New Energy Wind Power Blade Fan Turbine Mould Plug Mold Pattern Milling Cutting Five Axis Cnc Machine 5axis Cnc Router

Substitute : Wood. EPS, Foam, ABS, Aluminum Alov, Acrvic, Wood, Fiberglass, Rubber, Plastic, Resin, Carbon, Fiber Glass Fiber, Gyosum.
Sludge, Polymer Composites and Non-metalic carbonized mixed materials.

Quantity:
Availability:





Inquire Add to Basket

Model:
SF3565T-5S

Product Description

The work table adopts high-strength cast iron structure with T-Slot structure and resin sand modeling design; Ram, Left & Right Columns, and Beams are welded with steel sheet; All main mechanical parts are tempered, which has good shock absorption and thermal stability.
The high-end 5 axis CNC control system is characterized by high precision, diversified operations, intelligent processing and cross-border protection function, which can prevent mechanical collision caused by over travel during operation.
The five-axis box body is made of high-strength cast iron, Original imported high-torque & high-precision harmonic/RV reducer， Imported high-torque spindle. These all ensure the accuracy and stability of processing, and meanwhile greatly improve the processing efficiency.
Imported spindle, adopts HSK taper hole clamping method with strong tool locking force, high precision stability. Especially suitable for high-speed machining occasions, effectively improving machining accuracy and smoothness, and shortly reduce the machining time.
Automatic linear type tool change magazine with 12 tool positions, ensure stable and reliable tool exchange.
X, Y, and Z are driven by high-precision & pre-stretched ball screws, which are suitable for high-precision and powerful cutting of workpieces.
Customized service, customers can choose models according to the size of the model.

Product Parameters

Stroke Size(mm)	X:6500 Y:3500 Z:2500
5 Axis Working Size(mm)	X:5500 Y:2500 Z:2100
Spindle	Italy HITECO 15Kw Spindle
Spindle Speed	24000rpm/min
Spindle Cone	HSK 63F
A Axis	±120°
C Axis	±360°
Drive Type	XYZ all adopt high precision ball screws
Work Model	AC Servo Drive
Max Working Speed X/Y/Z(mm)	40/40/10
Max Rapid Speed X/Y/Z(m/min)	60/60/20
Positioning Accuracy X/Y/Z(mm/m)	0.025/0.025/0.025
Repeatability X/Y/Z(mm/m)	0.01/0.01/0.01
Work Table type	Cast Iron Table With T Siot
Air Pressure(kgf/cm²）	0.6~0.7
Total Power(KVA)	57
Gross Weight(T)	38

Product Applications

Sanitary Ware Industry

Materials: FRP composite materials, Gypsum, etc

Products Used: Bathtubs, Basins, Toilets, etc

Wind Power Industry
Materials: Wood, Fiberglass, composite materials, etc
Products Used: Blade Mold, Nacelle Cover Mold, etc
Automotive and Marine Industry
Materials: Wood, Carbon Fiber, Fiberglass, Sludge, Foam, Composite Materials, etc
Products Used: Car Models, Ship Models, Bumpers, Sheet Metal, etc
Aerospace & Mold industry & Sculpture Industry
Material: Wood, Plastic, Carbon Fiber Foam, Fiberglass, Composite Materials, etc.
Products Used: Military Confidential Products, Automotive Interiors, Medical Appliances, Casting Molds, etc.
