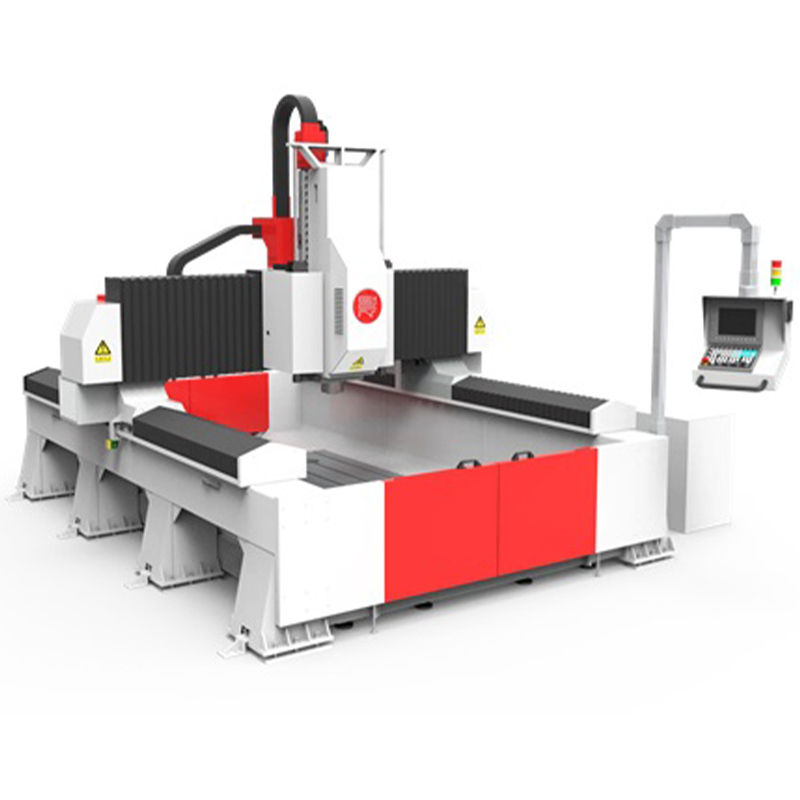

Cnc Foam Boring Molding Mold Making Cnc Router Machine for Milling Service Cnc Aluminum Mould Opening Machine

Cnc Foam Boring Molding Mold Making Cnc Router Machine for Milling Service Cnc Aluminum Mould Opening Machine

Control System: Huzhong 818   Servo Drive: Huzhong Servo
Roller Linear Guide Rail Direct Connect BT40-12000 Mechanical Spindle
Constant Temperature Drive System Z Axis Hydraulic Balance System
Cabinet Cooling System   Pneumatic & centralized lubrication System
Tool Cooling System Tricolor & Lighting Lighting
Chip Removal System   Standard Accessories & Related Documents
Tool Magazine (12T)   Common Maintenance Tools

Quantity:
Availability:





Inquire Add to Basket

Model:
SM3025
Brand:
CHENcan

Product Description

|

Product Description

Name

photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction..

2017-03-28

Hd0d663b36d8740f59e6e9d51839dfea4m

Machining efficiency is increased by 3-5 times compare with traditional machines

Cost reduction 20%-30%

Committed to Offer a high degree of process reliability and individual solutions for customers in completely different sectors.

It has the process functions of engraving and milling ,drilling,spot facer,boring,etc. Taiwan
Mechanical spindle is adopted,which is suitable for large torque and heavy processing operations.
Can choose to configure metal cutting industry famous brand fanuc or siemens CNC system.

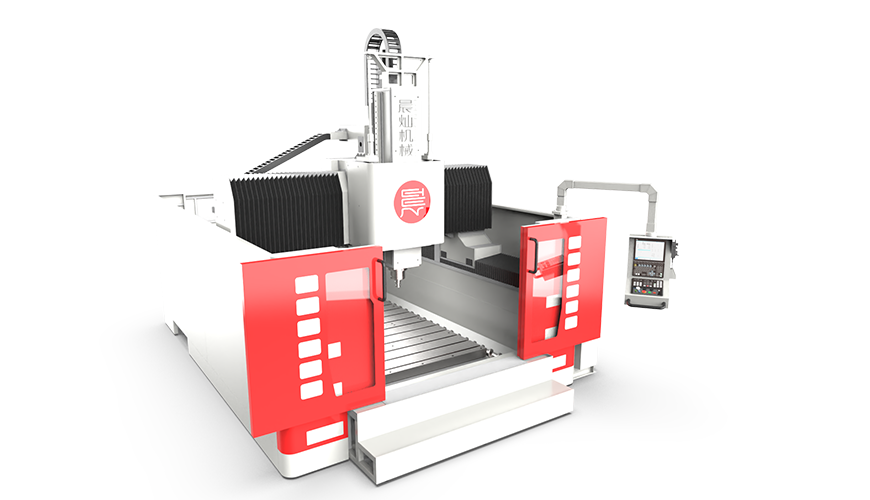

Moving beam design structure,large processing range and high processing precision.
Equipped with automatic tool change magazine,the number is random.
Equipped with spindle blowing,cutting fluid cooling and water circulation device.
The main shaft can be equipped with central water outlet function.
Equipped with screw + chain automatic chip removal machine,cleaning is fast.
Users can select models of different specifications according to their own needs.Common models include:SM1010/SM1610/SM1616/SM2020/SM2520/SM3020/SM4020/SM2525/SM3025/SM4025/SM3030/SM4030/SM6030,etc.

|

Product Parameters

Project	SM3025
X Stroke Size (mm)	3000	3000	3000
Y Stroke Size (mm)	2500	2500	2500
Z Stroke Size (mm)	600	800	1000
Distance from Spindle Nose to Table (mm)	100-700	100-900	100-1000
Work Table
Work Table Size (mm)	3000*2500	3000*2500	3000*2500
Work Table Load (T)	4	4	4
T Slot (Width-Space-No.)	22-210-14	22-210-14	22-210-14
Feed Speed
Max Working Speed X/Y/Z(m/min)	20/20/10	20/20/10	20/20/10
Max Rapid Speed X/Y/Z(m/min)	35/35/12	35/35/12	35/35/12
Spindle Servo Motor
Max Spindle Speed (rpm)	12000	12000	12000
Max Spindle Motor Power (Kw)	10	10	10
Max Spindle Motor Torque (N.m)	47.8	47.8	47.8
Spindle Cone	BT40	BT40	BT40
Tool Magazine
Tool Magazine Capacity	12	12	12
Max Tool Diameter (mm)	φ65	φ65	φ65
Max Tool Length (mm)	250	250	250
Max Length Weight (Kg)	8	8	8
Precision
Positioning Accuracy X/Y/Z (mm/m)	0.028/0.027/0.015
Repeatability X/Y/Z (mm/m)	0.016/0.015/0.01
Other
Air Pressure (kgf/cm2	6.5	6.5	6.5
Total Power (KVA	21	21	21
Gross Weight (T	16	16.5	17
Land Size L*M (mm	5600*5200	5600*5200	5600*5200
Machine Height (mm	3600	4000	4400

|

Application Video

| Product Applications

Based on high-degrees manufacturing and research and development of three-axis & five-axis linkage machining centers, composite panel sawing machining centers, and FDM industrial-grade 3D printers. We has rich experience in the application of five-axis machine tools and has become a mature multi-axis machine manufacturer in China. All products be widely used in the high precision CNC machining needs of different fields such as rail transit, aviation, aerospace, automobiles, ships, yachts, medical care, wind power, molds, landscape sculptures and other mold mould making.
