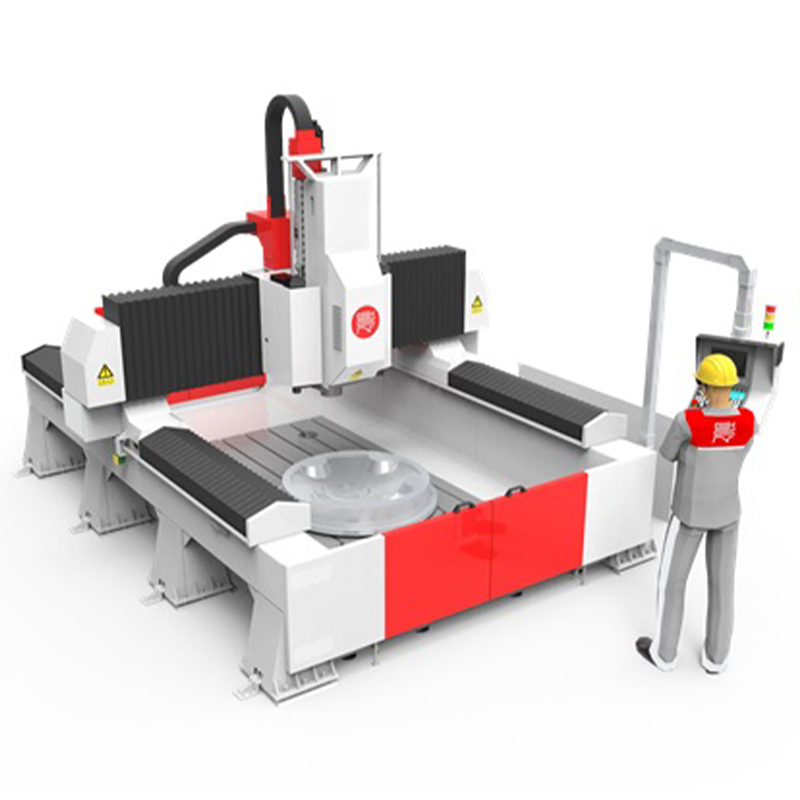

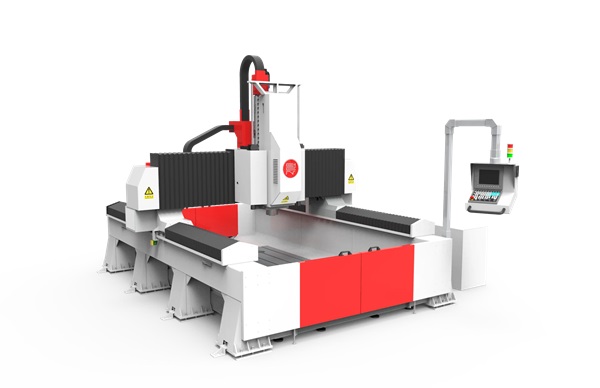

CHENcan 3020 Metal Foam Wood Styrofoam 3D Carving Graving Drilling Milling CNC Router Machine

CHENcan 3020 Metal Foam Wood Styrofoam 3D Carving Graving Drilling Milling CNC Router Machine

Control System: Huzhong 818   Servo Drive: Huzhong Servo
Roller Linear Guide Rail Direct Connect BT40-12000 Mechanical Spindle
Constant Temperature Drive System Z Axis Hydraulic Balance System
Cabinet Cooling System   Pneumatic & centralized lubrication System
Tool Cooling System Tricolor & Lighting Lighting
Chip Removal System   Standard Accessories & Related Documents
Tool Magazine (12T)   Common Maintenance Tools

Quantity:
Availability:





Inquire Add to Basket

Model:
SM3020
Brand:
CHENcan

Product Description

|

Product Description

Machining efficiency is increased by 3-5 times compare with traditional machines

Cost reduction 20%-30%

Committed to Offer a high degree of process reliability and individual solutions for customers in completely different sectors.

It has the process functions of engraving and milling ,drilling,spot facer,boring,etc.
Taiwan mechanical spindle is adopted,which is suitable for large torque and heavy processing operations.
Can choose to configure metal cutting industry famous brand fanuc or siemens CNC system.
Moving beam design structure,large processing range and high processing precision.
Equipped with automatic tool change magazine,the number is random.
Equipped with spindle blowing,cutting fluid cooling and water circulation device.
The main shaft can be equipped with central water outlet function.
Equipped with screw + chain automatic chip removal machine,cleaning is fast.
Users can select models of different specifications according to their own needs.Common models include:SM1010/SM1610/SM1616/SM2020/SM2520/SM3020/SM4020/SM2525/SM3025/SM4025/SM3030/SM4030/SM6030,etc.

|

Product Parameters

Project	SM2520
X Stroke Size (mm)	3000	3000
Y Stroke Size (mm)	2000	2000
Z Stroke Size (mm)	600	800
Distance from Spindle Nose to Table (mm)	100-700	100-900
Work Table
Work Table Size (mm)	3000*2000	3000*2000
Work Table Load (T)	4	4
T Slot (Width-Space-No.)	22-210-14	22-210-14
Feed Speed
Max Working Speed X/Y/Z(m/min)	20/20/10	20/20/10
Max Rapid Speed X/Y/Z(m/min)	35/35/12	35/35/12
Spindle Servo Motor
Max Spindle Speed (rpm)	12000	12000
Max Spindle Motor Power (Kw)	10	10
Max Spindle Motor Torque (N.m)	47.8	47.8
Spindle Cone	BT40	BT40
Tool Magazine
Tool Magazine Capacity	12	12
Max Tool Diameter (mm)	φ65	φ65
Max Tool Length (mm)	250	250
Max Length Weight (Kg)	8	8
Precision
Positioning Accuracy X/Y/Z (mm/m)	0.028/0.025/0.015
Repeatability X/Y/Z (mm/m)	0.016/0.013/0.01
Other
Air Pressure (kgf/cm2	6.5	6.5
Total Power (KVA	21	21
Gross Weight (T	11	11.5
Land Size L*M (mm	5600*4700	5600*4700
Machine Height (mm	3600	4000

|

Application Video

| Product Applications

Based on high-degrees manufacturing and research and development of three-axis & five-axis linkage machining centers, composite panel sawing machining centers, and FDM industrial-grade 3D printers. We has rich experience in the application of five-axis machine tools and has become a mature multi-axis machine manufacturer in China. All products be widely used in the high precision CNC machining needs of different fields such as rail transit, aviation, aerospace, automobiles, ships, yachts, medical care, wind power, molds, landscape sculptures and other mold mould making.
