BS2513-5S
Ram, Left & Right Columns, Beams and woke table are welded with steel sheet, work table with T-Slot structure; All main mechanical parts are tempered, which has good shock absorption and thermal stability.
The high-precision 5 axis CNC control system is characterized by high precision, diversified operations, intelligent processing and cross-border protection function, which can prevent mechanical collision caused by over travel during operation.
The five-axis box body is made of high-strength cast iron, Original imported high-torque & high-precision harmonic/RV reducer, Imported high-torque spindle. These all ensure the accuracy and stability of processing, and meanwhile greatly improve the processing efficiency.
Spindle adopts HSK taper hole clamping method with strong tool locking force, high precision stability. Especially suitable for high-speed machining occasions, effectively improving machining accuracy and smoothness, and shortly reduce the machining time.
Automatic carousel type tool change magazine with 8 tool positions, ensure stable and reliable tool exchange.
X, Y, and Z are driven by high-precision & pre-stretched ball screws, which are suitable for high-precision and powerful cutting of workpieces.
Application Materials:
Substitute Wood, EPS, Foam, ABS, Aluminum Alloy, Acrylic, Wood, Fiberglass, Rubber, Plastic, Resin, Carbon, Fiber Glass Fiber, Gypsum, Sludge, Polymer Composites and Non-metallic carbonized mixed materials.
Technical Specification:
| model | BS2513-5S |
| Stroke Size (mm) | X:3450 Y:2150 Z: 1200 |
| Working Size (mm) | X: 2500 Y: 1300 Z: 800 |
| Spindle | Italy HITECO 15Kw Spindle |
| Spindle Speed | 24000rpm/min |
| Spindle Cone | HSK 63F |
| A Axis | ±120° |
| C Axis | ±360° |
| Drive Type | XYZ all adopt high precision ball screws |
| Work Model | Steel Table or Vacuum Table |
| Max Working Speed X/Y/Z(m/min) | 30/30/10 |
| Max Rapid Speed X/Y/Z(m/min) | 60/60/20 |
| Positioning Accuracy X/Y/Z (mm/m) | 0.025/0.025/0.025 |
| Repeatability X/Y/Z (mm/m) | 0.01/0.01/0.01 |
| Work Table Type | Steel Table or Vacuum Table |
| Air Pressure (kgf/cm2) | 0.6~0.7 |
| Total Power (KVA) | 38 |
| Gross Weight (T) | 10 |
| Applicable materials | Wood/little aluminum |
| Form of structure | movable type |
| 5-axis head | L-type with encoder and air brake |
| control system | Huazhong |
| servo drive | Huazhong |
| screwdriver | GTEN Taiwan |
| rails | JapanTHK |
| speed reducer | APEX |

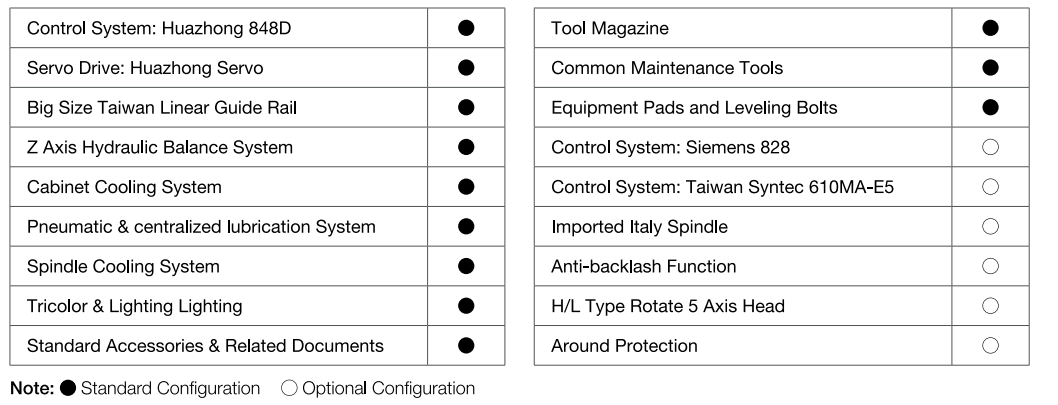

Equipment accessories:

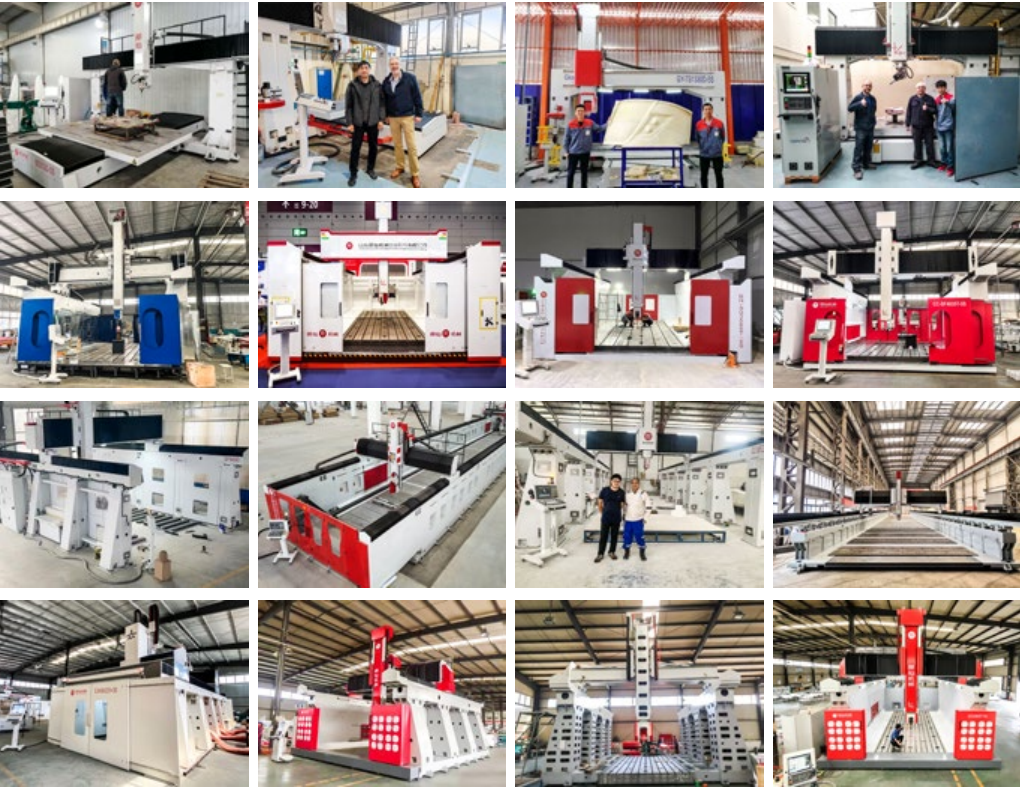

Customer Site:
