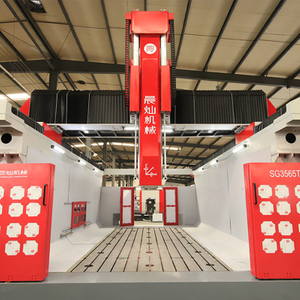

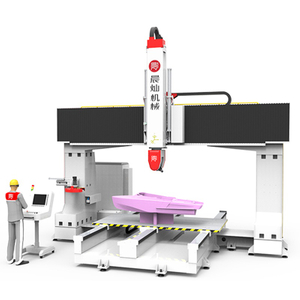

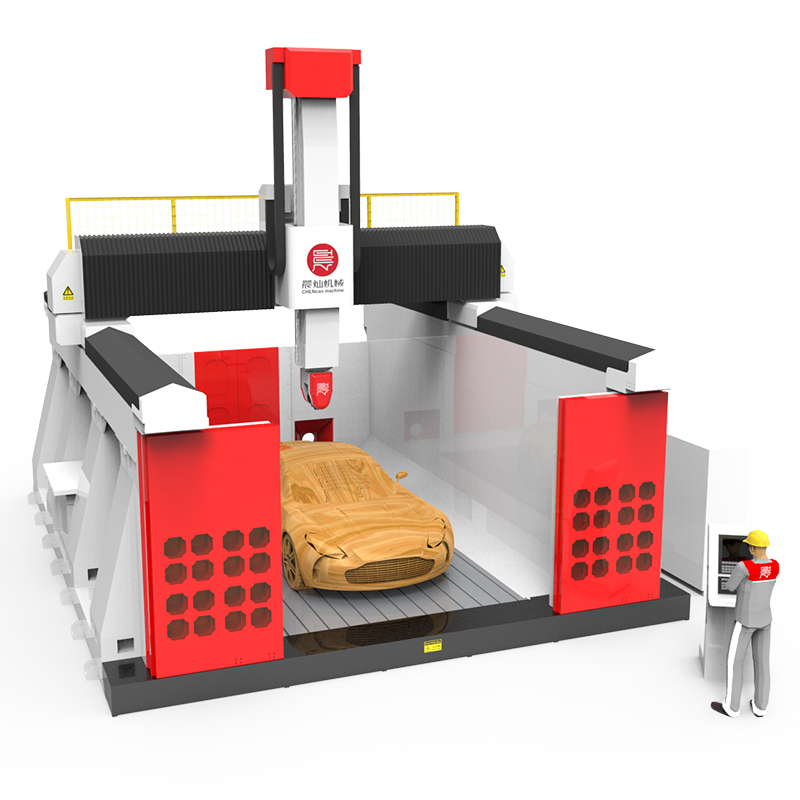

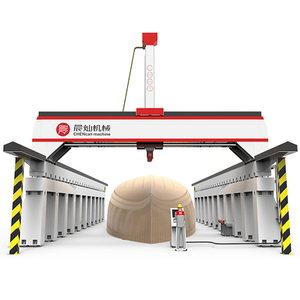

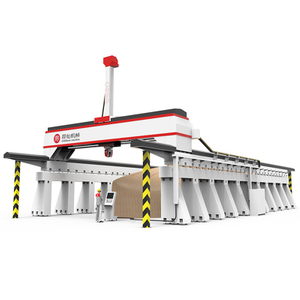

Portal Type 5 Axis Linkage Machining Center

Portal Type 5 Axis Linkage Machining Center

1. Five-axis machining center is a large category of CNC equipment, which adopts the equipment gantry frame fixed, working table mobile machining mode, five-axis machining technology, with milling, boring, drilling, tapping, engraving and other processing functions.

2. Multi-angle machining can be done with complex styling and surface workpieces.

3. Mainly used in aerospace, rail transportation, wind power, yacht ships, construction industry, mold models, insulation materials and other industries.

4. Can be based on the industry processing needs, quickly provide reasonable supporting solutions.

5. Has strong strength in industrial processing equipment intelligent and digital system service.

Quantity:
Availability:





Inquire Add to Basket

Model:
SF3565T-5S
Brand:
CHENcan

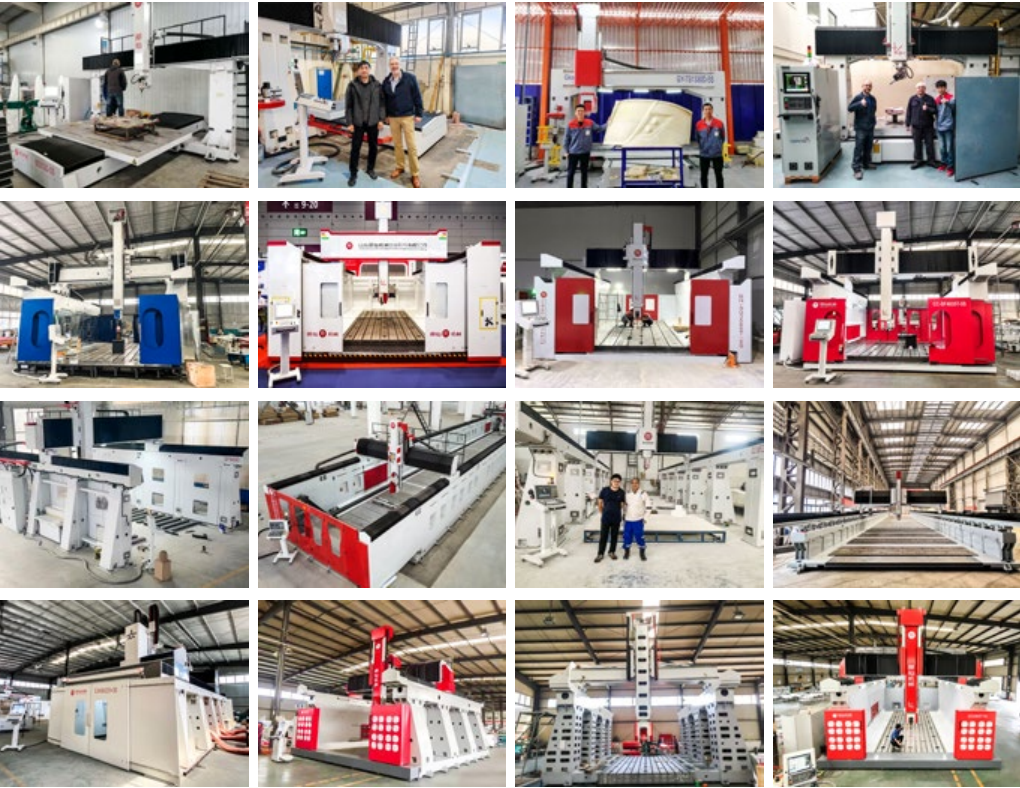

Product Description

1. The work table adopts high-strength cast iron structure with T-Slot structure and resin sand modeling design; Ram, Left & Right Columns, and Beams are welded with steel sheet; All main mechanical parts are tempered, which has good shock absorption and thermal stability.

2. The high-end 5 axis CNC control system is characterized by high precision, diversified operations, intelligent processing and cross-border protection function, which can prevent mechanical collision caused by over travel during operation.

3. The five-axis box body is made of high-strength cast iron, Original imported high-torque & high-precision harmonic/RV reducer， Imported high-torque spindle. These all ensure the accuracy and stability of processing, and meanwhile greatly improve the processing efficiency.

4. Imported spindle, adopts HSK taper hole clamping method with strong tool locking force, high precision stability. Especially suitable for high-speed machining occasions, effectively improving machining accuracy and smoothness, and shortly reduce the machining time.

5. Automatic linear type tool change magazine with 12 tool positions, ensure stable and reliable tool exchange.

X, Y, and Z are driven by high-precision & pre-stretched ball screws, which are suitable for high-precision and powerful cutting of workpieces.

6. Customized service, customers can choose models according to the size of the model.

Application Materials:

Substitute Wood, EPS, Foam, ABS, Aluminum Alloy, Acrylic, Wood, Fiberglass, Rubber, Plastic, Resin, Carbon, Fiber Glass Fiber, Gypsum, Sludge, Polymer Composites and Non-metallic carbonized mixed materials.

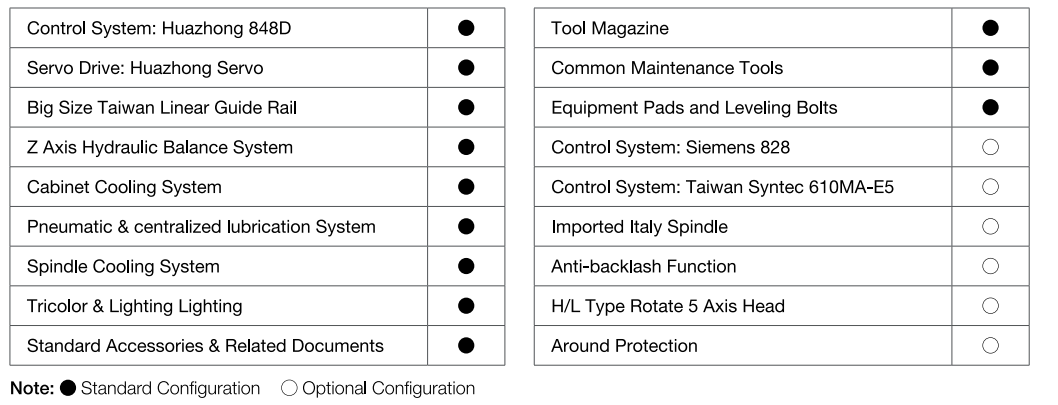

Technical Specification:

Stroke Size (mm)	X: 6500 Y: 3500 Z: 2500
5 Axis Working Size(mm)	X: 5500 Y: 2500 Z: 2100
Spindle	Italy HITECO 15Kw Spindle
Spindle Speed	24000rpm/min
Spindle Cone	HSK 63F
A Axis	±120°
C Axis	±360°
Drive Type	XYZ all adopt high precision ball screws
Work Model	AC Servo Drive
Max Working Speed X/Y/Z(m/min)	40/40/10
Max Rapid Speed X/Y/Z(m/min)	60/60/20
Positioning AccuracyX/Y/Z (mm/m)	0.025/0.025/0.025
RepeatabilityX/Y/Z (mm/m)	0.01/0.01/0.01
Work Table Type	Cast Iron Table with T Slot
Air Pressure (kgf/cm2)	0.6~0.7
Total Power (KVA)	57
Gross Weight (T)	38
