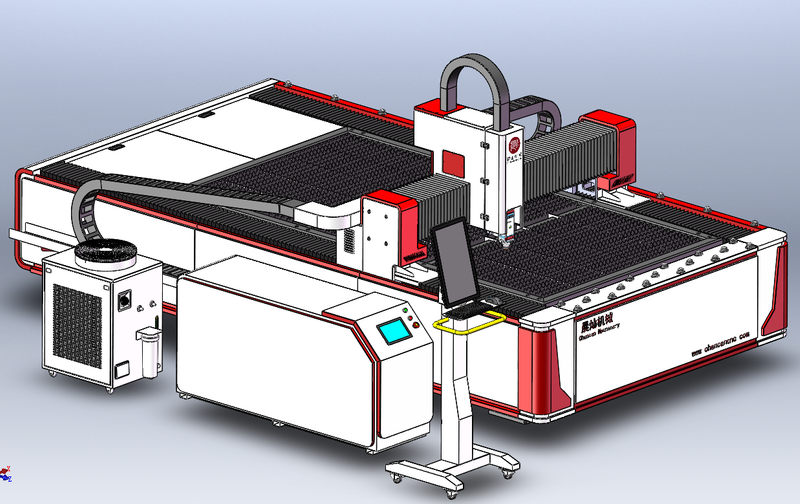

HighTech Automatic Cutting Optical Fiber Laser Cutting Machine Metal Steel 1500W 3000W 6000W Laser Plate Cutting Machine

HighTech Automatic Cutting Optical Fiber Laser Cutting Machine Metal Steel 1500W 3000W 6000W Laser Plate Cutting Machine

Chencan CNC as the top fiber laser solution provider, focus on high-quality fiber laser cutting machines.
Widely be used for steel, copper, aluminum, carbon steel and other meal materials.angle, and realize a complete set of composite boards in the program. Modeling processing.

Quantity:
Availability:





Inquire Add to Basket

Model:
GX6020

Product Description

1. Working table:

(1). High precision CNC fixed working table

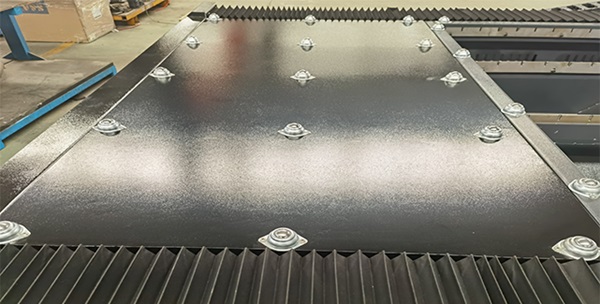

(2). Special designed small pneumatic wheel carriers ,the metal sheet to be cut may slide along the machine body for easy loading

(3). Strip working table; Steel material,put cutting sheet on it .

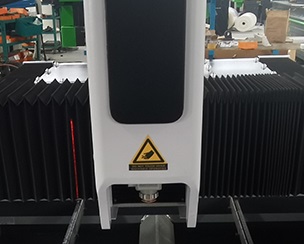

2. Cutting Head: Raytools brand registered in Switzerland. High accuracy and efficiency and stable.

3. CYPCUT CNC lasercontrol system:Supporting AutoCAD,Coreldrawfile in dxf, plt format. Capable of setting cutting parameters in different layers;Nesting function can help to maximize the material use-ratio.

4. Laser generator:Raycusis No.1 Laser source brand in China. It was supported by Chinese government and cooperated with Chinese military industry.

5. Linear guideway:CSK from Taiwan,the advantages are high precision,long-service life,high dust performance and running steadily.

6. Water Chiller:HL brand,according to our warehouse

(1).Industrial water cooling machine is standard configuration (2).Mainly used for cooling the laser generator and machine, it can control the temperature automatically.

7. Machines can be customized upon request.

Product Parameters

Project	GM6020
X Stroke Size (mm)	2000
Y Stroke Size (mm)	6000
Z Stroke Size (mm)	150
X-axis air speed(m/min)	80
Y-axis air speed(m/min)	80
Z-axis air speed(m/min)	15
cutting head	Swiss raytools automatic cutting head+red light positioning
protective structure	Open Countertop Under Counter Smoking
Form of structure	Fixed workbench
lasers	American GM fiber optic
Fiber optic power	1kw/1.5kw/2kw/3kw/4kw
position accuracy(mm/m)	0.05
Repeat Positioning Accuracy(mm/m)	0.03
input voltage	380V 50Hz

Application Video

Product Applications

Materials: Cutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy plates, rare metal and other materials cutting. Industry: kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc.
