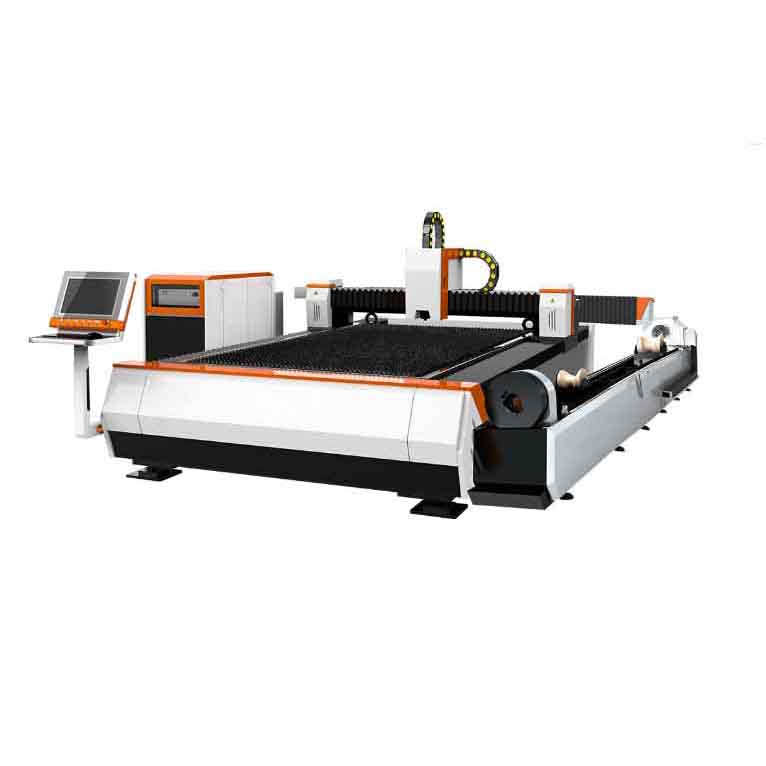

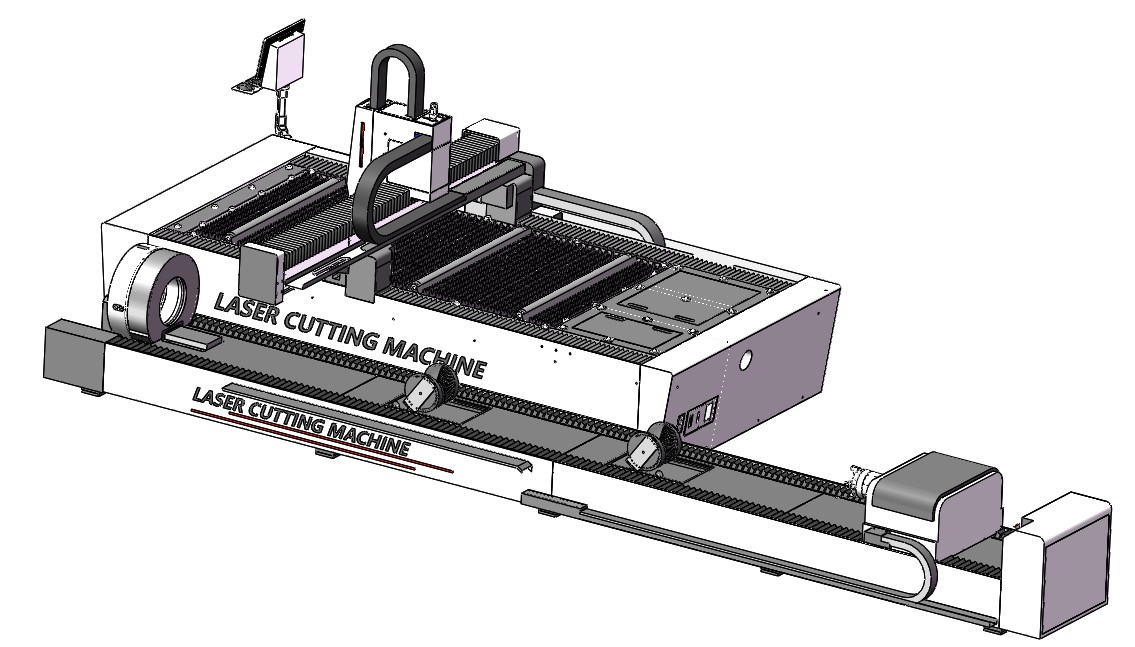

Dual-use Sheet & Tube Fiber Laser Cutting Machine

Dual-use Sheet & Tube Fiber Laser Cutting Machine

Suitable for pipe cutting of stainless steel, aluminum, alloy, sheet metal, copper, steel and other metal materials.
Main models:GX3015T/GX4020T/GX6020T
This machine supports customized service.

Quantity:
Sheet and tube cutting machine:	GX3015T GX4020T GX6020T
Availability:





Inquire Add to Basket

Product Description

1. One Machine with Two Functions：can cut both tube and plate metals, combining a tube laser cutting machine and plate laser cutting machine.

2.Cutting Head: Raytools brand registered in Switzerland. High accuracy and efficiency and stable.

3.CYPCUT CNC lasercontrol system:Supporting AutoCAD,Coreldrawfile in dxf, plt format. Capable of setting cutting parameters in different layers;Nesting function can help to maximize the material use-ratio.

4.Laser generator:Raycusis No.1 Laser source brand in China. It was supported by Chinese government and cooperated with Chinese military industry.

5.Linear guideway:CSK from Taiwan,the advantages are high precision,long-service life,high dust performance and running steadily.

6.Water Chiller:HL brand,according to our warehouse

1.Industrial water cooling machine is standard configuration, 2.Mainly used for cooling the laser generator and machine, it can control the temperature automatically.

7.Machines can be customized upon request.

Product Parameters

Project	GM3015T	GM4020T	GM6020T
Working Area	3000*1500mm	4000*2000mm	6000*2000mm
cutting head	Swiss Raytools automatic cutting head+red light positioning
protective structure	Open Countertop Under Counter Smoking
Form of structure	Fixed workbench
lasers	MAX fiber optic
Fiber optic power	1kw/1.5kw/2kw/3kw/4kw/6kw
position accuracy(mm/m)	0.05
Repeat Positioning Accuracy(mm/m)	0.02
input voltage	380V 50Hz

Application Video

Product Applications

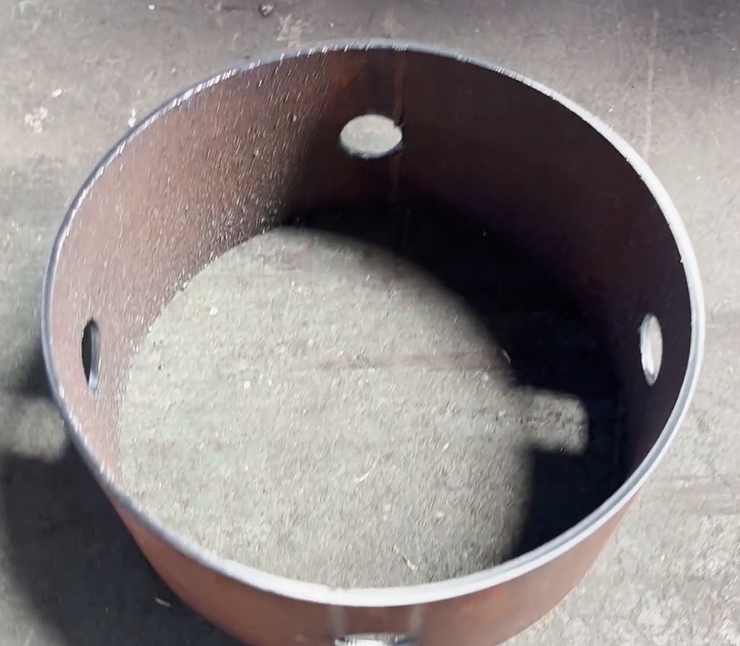

Materials: Cutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy plates, rare metal and other materials cutting. Industry: kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc.
