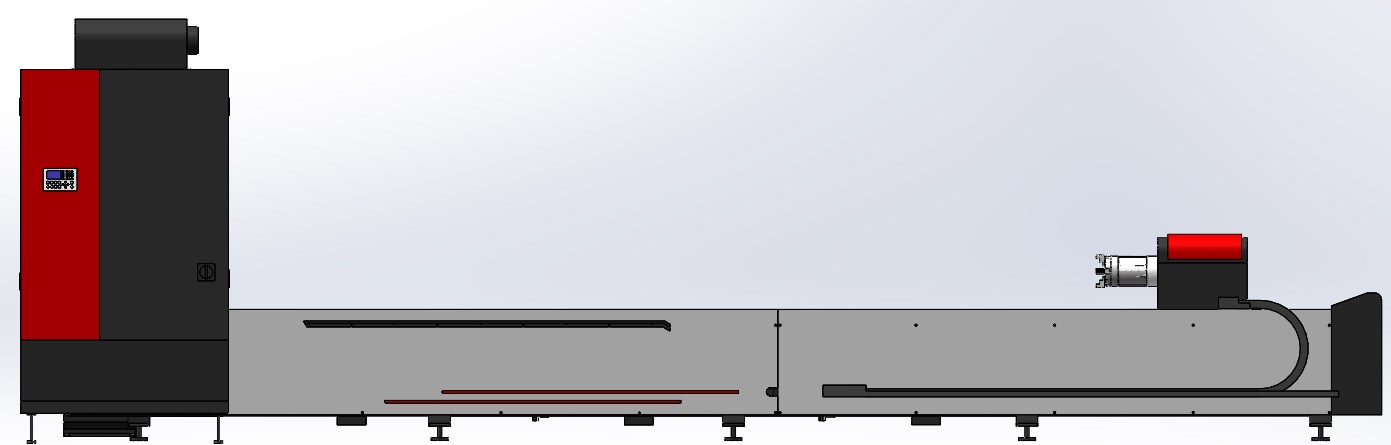

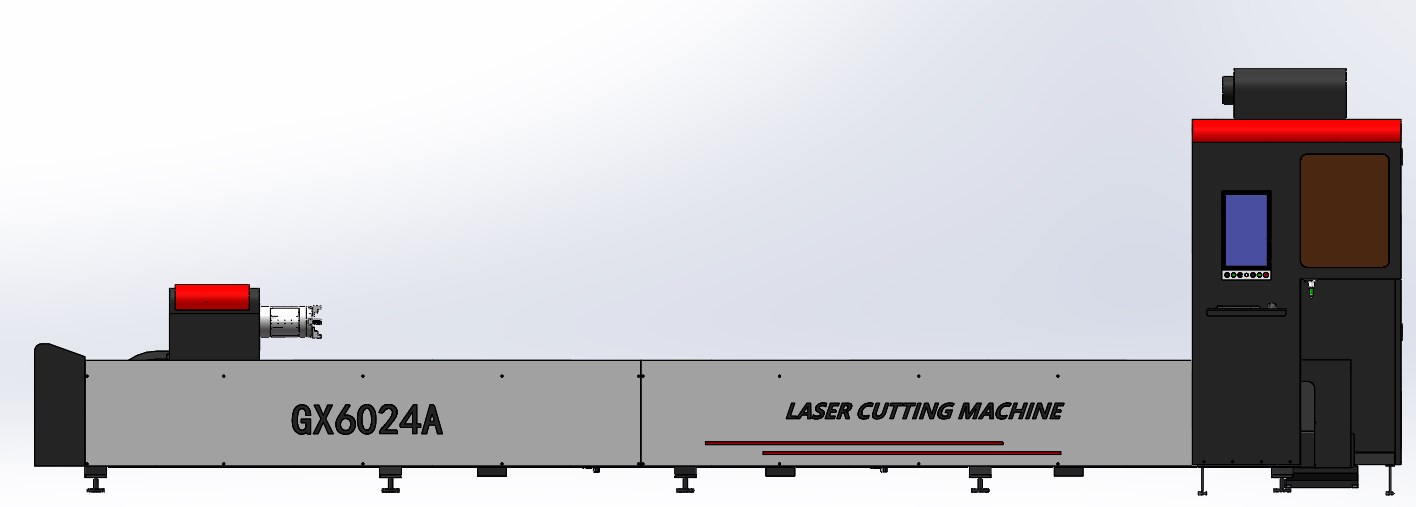

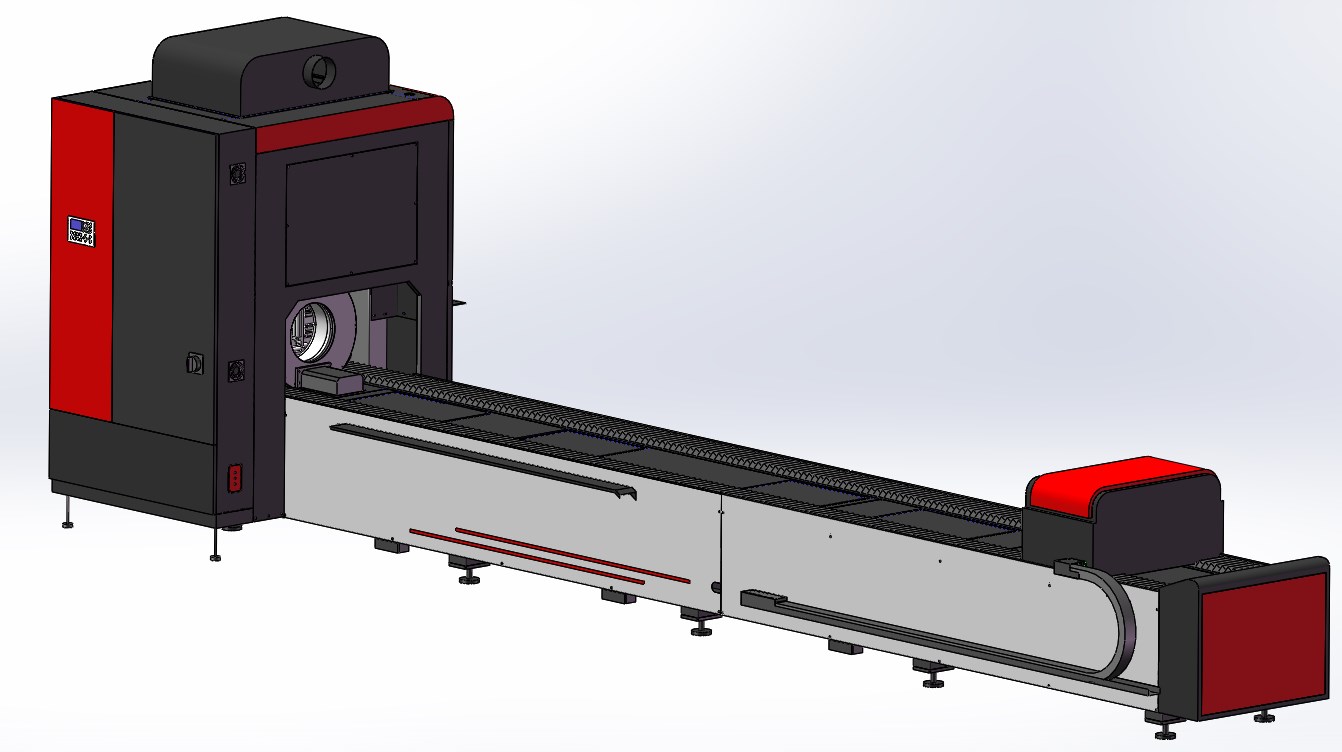

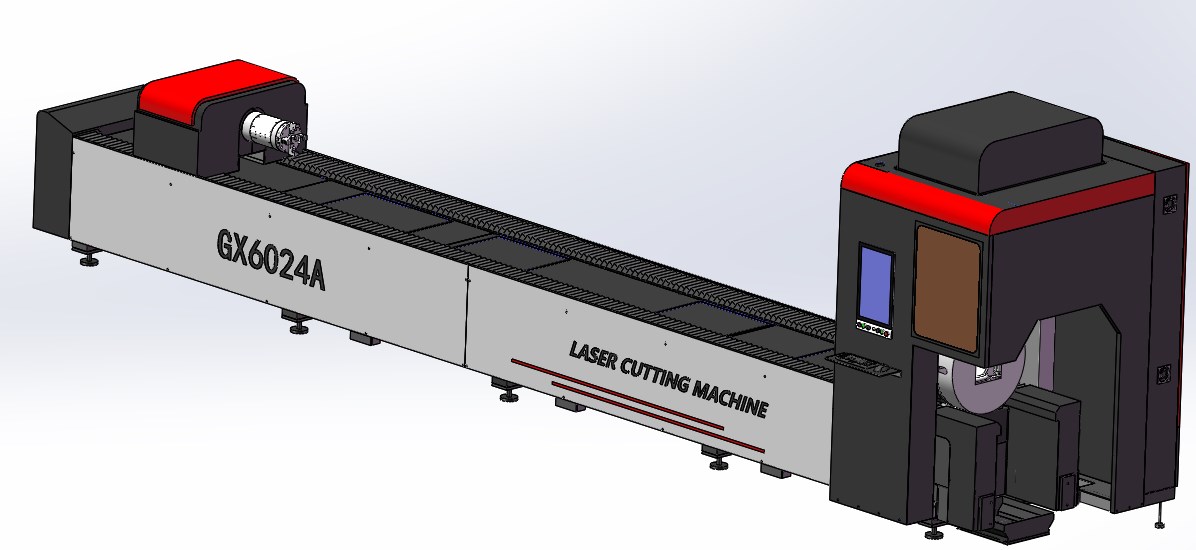

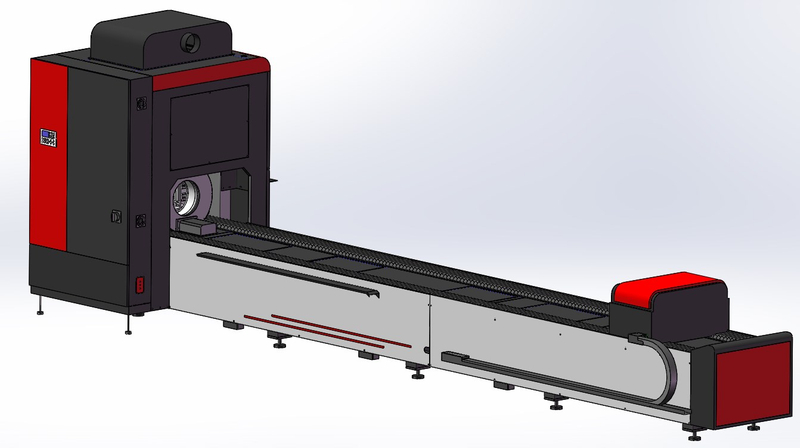

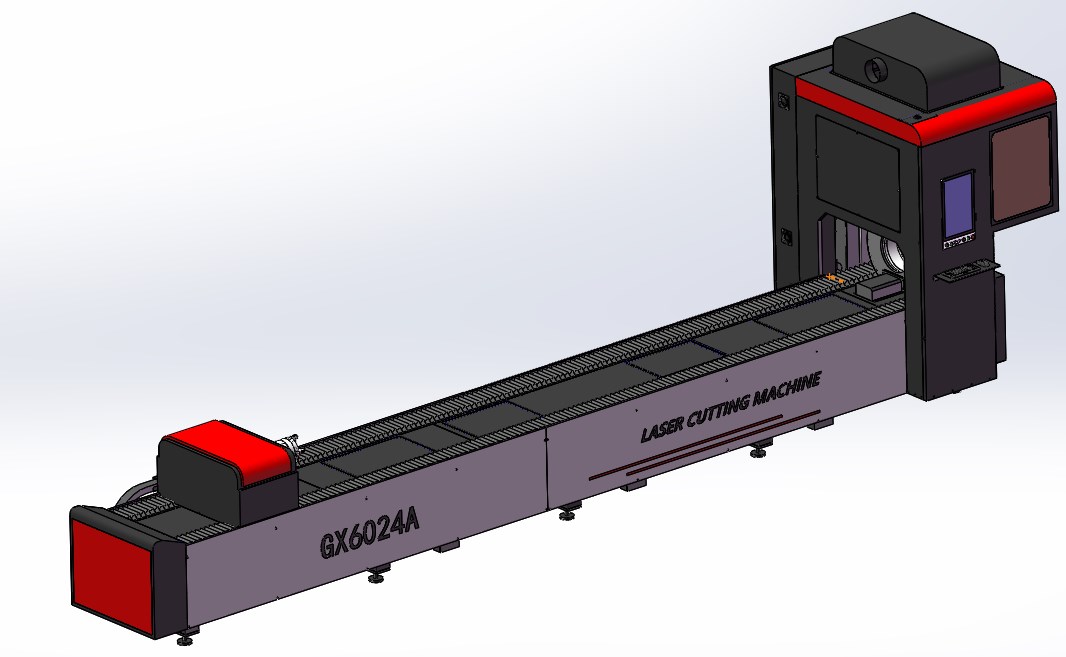

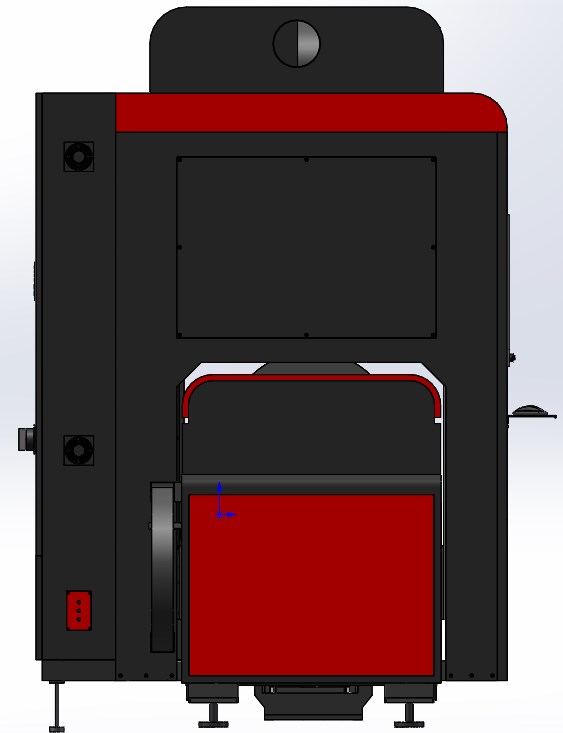

Automatic Pipe Laser Cutting Machine for Aluminum Stainless Steel Alloy New Condition for Circular Cutting of Metals

Automatic Pipe Laser Cutting Machine for Aluminum Stainless Steel Alloy New Condition for Circular Cutting of Metals

Suitable for pipe cutting of stainless steel, aluminum, alloy, sheet metal, copper, steel and other metal materials.

Quantity:
Availability:





Inquire Add to Basket

Model:
GX6024A
Brand:
CHENcan

Product Description

1. Working table:

(1). High precision CNC fixed working table

(2). Pipe cutting table as standard, can also be upgraded with automatic loading and unloading tables.

(3). Strip working table; Steel material,put cutting sheet on it .

2. Cutting Head: Raytools brand registered in Switzerland. High accuracy and efficiency and stable.

3. CYPCUT CNC lasercontrol system:Supporting AutoCAD,Coreldrawfile in dxf, plt format. Capable of setting cutting parameters in different layers;Nesting function can help to maximize the material use-ratio.

4. Laser generator:China Laser Brand MAX

5. Linear guideway:CSK from Taiwan,the advantages are high precision,long-service life,high dust performance and running steadily.

6. Water Chiller:HL brand,according to our warehouse

(1).Industrial water cooling machine is standard configuration (2).Mainly used for cooling the laser generator and machine, it can control the temperature automatically.

7. Machines can be customized upon request.

Product Parameters

Project	GM6024A
Servo motor：Yaskawa	X:850W ,Y:1.8Kw ,Z:400W
front chuck	1.8kw
Back Chuck	850w
speed reducer	Shimpo
slideway	Taiwanese Hiwin
lasers	MAX
cutting head	Swiss raytools automatic cutting head+red light positioning
protective structure	Open Countertop Under Counter Smoking
Form of structure	Fixed workbench
Fiber optic power	1kw/1.5kw/2kw/3kw/4kw/6kw
position accuracy(mm/m)	0.05
Repeat Positioning Accuracy(mm/m)	0.03
input voltage	380V 50Hz

| Product Applications

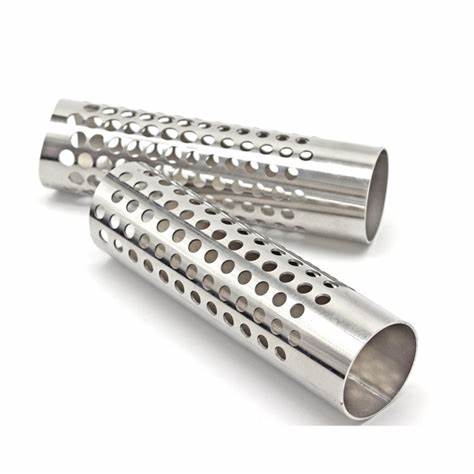

OIP-C

Materials: Cutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy plates, rare metal and other materials cutting. Industry: kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc.
