SF1530Q-5S

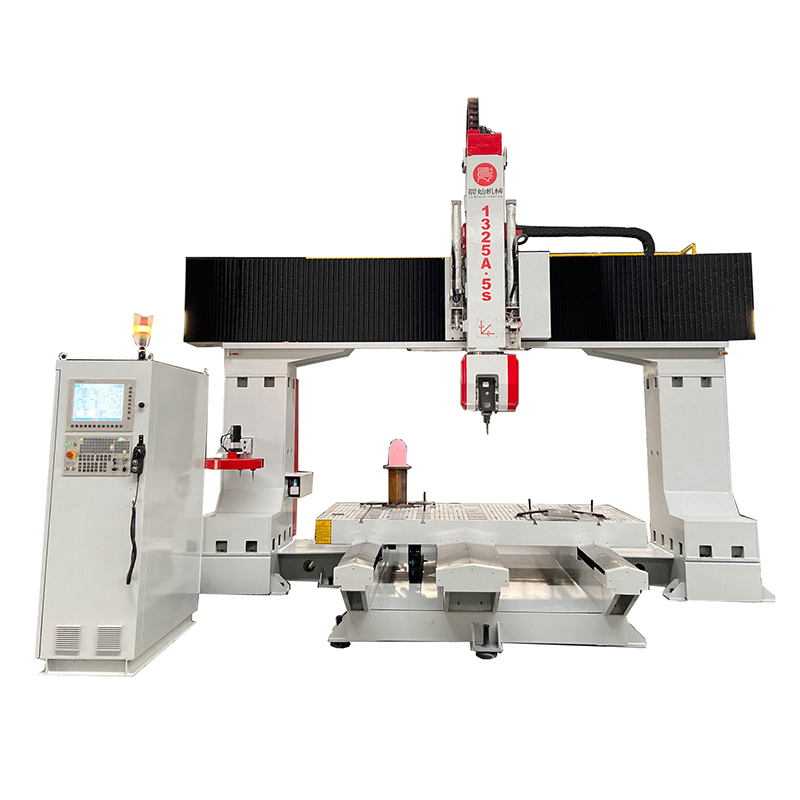

1. 5-axis Wood Pattems Milling Router of SF Table Move Series be specifically designed for 3D machining and holding tight tolerances, which can hold much tighter and more consistent tolerances than held by hand. Widely be used for pattern and mould manufacturing with high requirements on precision and high finish.
2. The SF Table Move Series cnc router with table move stucture and high accuracy ball screws for a good performance. It has the characteristics of small layout, high efficiency and high speed. Most economical for medium size, light weight workpieces.
3. CHENcan sefl-engineered 5 axis rotary head combines powerful troque with exceptional rotational speed. Utilizing imported reduction gears and air braking system, it maintains precision for extended operation.
Industry
Automotive
Aerospace
Marine
Railway
Patterns and Moulds
Sanitary Ware
Material
Wood, MDF, PVC, Foam
Composites
Epoxy, Putty
FRC, GRC
Resins
Light Alloys
| Stroke Size(mm) | X:3000 Y:1500 Z:1200 |
| 5 Axis Working Size(mm) | X:3000 Y:1500 Z:800 |
| Spindle | Italy HITECO 15Kw Spindle |
| Spindle Speed | 24000rpm/min |
| Spindle Cone | HSK 63F |
| A Axis | ±120° |
| C Axis | ±360° |
| Control CNC | HNC |
| Tool Change | 8 Positions |
| Drive Type | XYZ: High precision ball screws |
| Work Model | AC Servo Drive |
| Max Working Speed X/Y/Z(mm) | 40/40/10 |
| Max Rapid Speed X/Y/Z(m/min) | 60/60/20 |
| Positioning Accuracy X/Y/Z(mm/m) | 0.04/0.04/0.04 |
| Repeatability X/Y/Z(mm/m) | 0.025/0.025/0.025 |
| Work Table type | Iron Table with T slot |
| Air Pressure (kgf/cm2） | ≥0.08 |
| Total Power (KVA) | 38 |
| Gross Weight (T) | 11 |
| Control CNC | Siemens, Syntec |
| Spindle | From 15kw up to 42kw, 24000rpm max. |
| Spindle Head | H Type-Double Shoulder Type |
| Work Table | Aluminum Table, Vacuum Table |
| Around Protection | Enclosure, Roof |
| Dust Suction System | Grids+hood |
| Vision Cameras | 2 cameras, 4 cameras |
| Tool sensor | TSR27, NC4, |
| Probe | RMP600, RMP 600 |
