PC3030

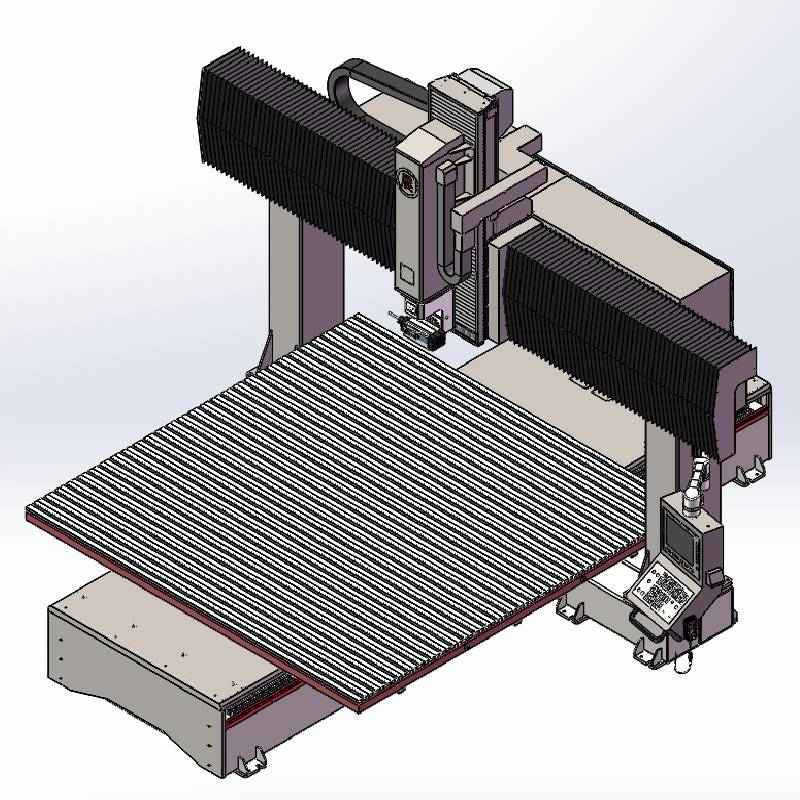

1. CHENcan PC Economy Series 5 Axis Wood CNC Router for Mold Industry be designed to meet the production needs of kinds plastic and composite materials components used in different industries.
2. The PC Economy Series 5 axis cnc router with table move design for the high machining speed with competitive cost, which does not effect the cutting and trimming quality, ensuring maximum productivity.
3. Could choose customize working size with low price.
4. RTCP function as optional.
Industry
Thermoformed
Aerospace
Automotive
Marine
Medical
Railway
Material
Composites
Plastic
FRC, GRC
Resins
| Stroke Size(mm) | X:3000 Y:3000 Z:1000 |
| 5 Axis Working Size(mm) | X:3000 Y:3000 Z:800 |
| Rotary Head | CHENcan Brand |
| Spindle | Italy HSD 6Kw Spindle |
| Spindle Speed | 24000rpm/min |
| Spindle Cone | ER32 |
| A Axis | ±120° |
| C Axis | ±360° |
| Control CNC | HNC |
| Tool Change | No |
| Drive Type | XYZ: High precision ball screws |
| Work Model | AC Servo Drive |
| Max Working Speed X/Y/Z(mm) | 15/15/10 |
| Max Rapid Speed X/Y/Z(m/min) | 30/30/15 |
| Positioning Accuracy X/Y/Z(mm/m) | 0.1/0.1/0.08 |
| Repeatability X/Y/Z(mm/m) | 0.05/0.05/0.04 |
| Work Table type | Aluminum Table with T slot |
| Air Pressure (kgf/cm2） | ≥0.08 |
| Max Table Load (kgs) | 2000 |
