- Series: SF Large Scale Series
- Model:SF19070-5S
- Category:5 Axis CNC Center
- Brand:CHENcan
- Condition:NEW
- H.S.Code:84659900
- Assistance: T: +86 18763926336

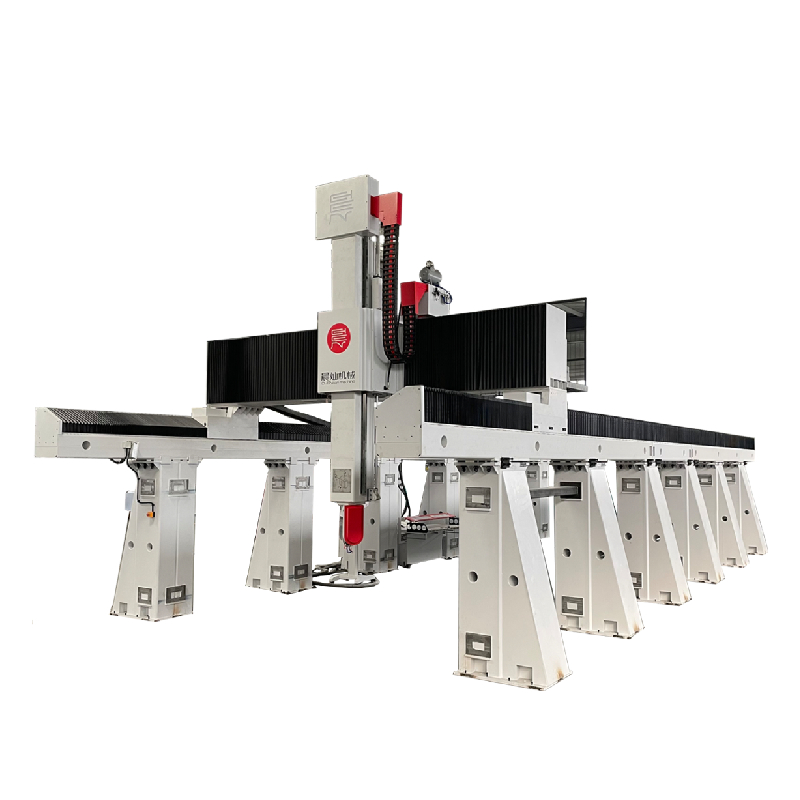

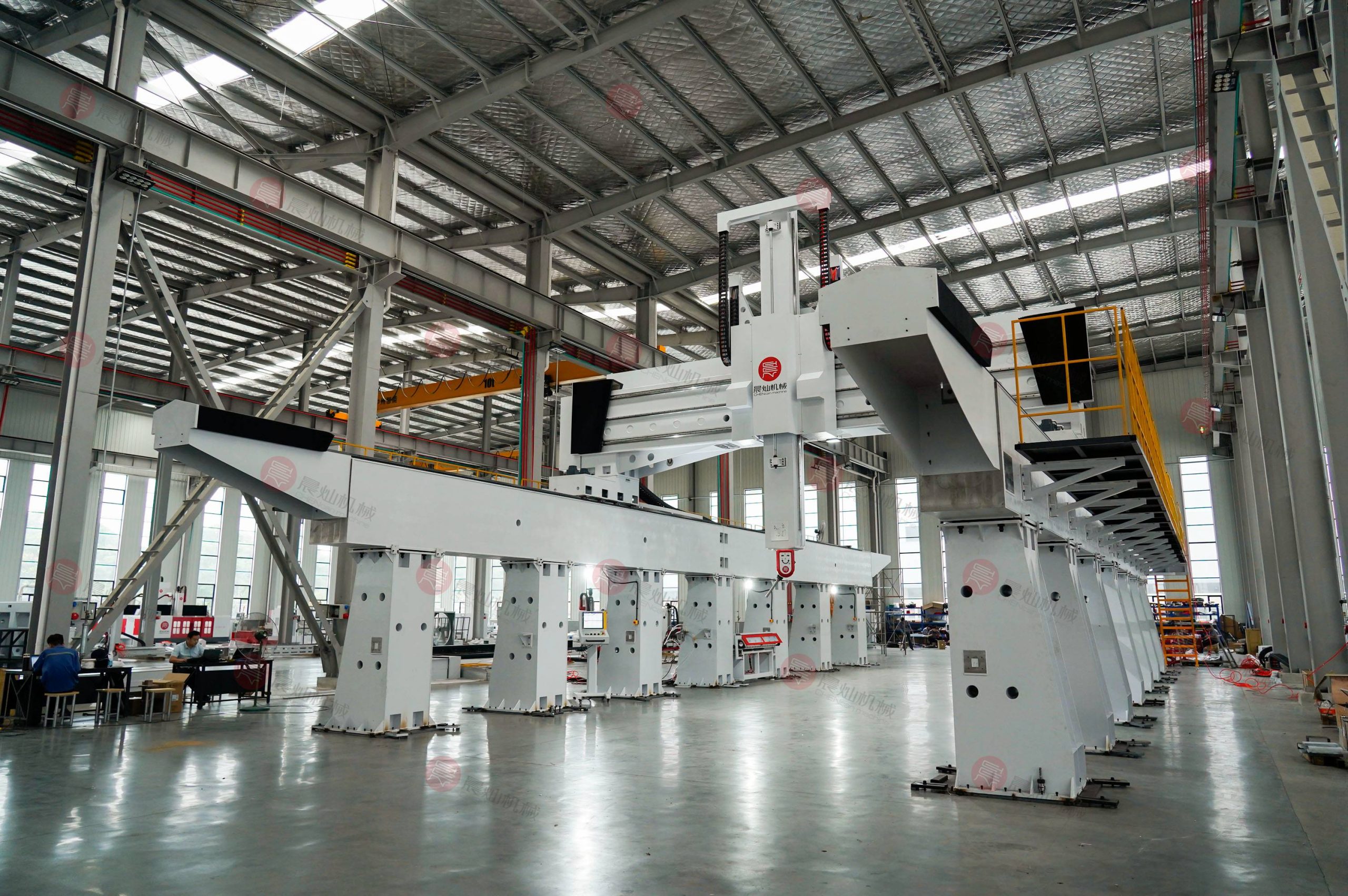

1. Large High Speed 5 Axis Cnc Router for Making Boat Building for Wind Turbine Blade Mold Manufacturing of SF Large Scale Series be designed to meet the produciton needs of the automotive, aeronutical, and marine sectors, and composite components.
2. The SF Large Scale Series models with heavy duty stucture for a good performance: high efficiency, short machining times, high quality surface finish, rigidity over time and long life time.
3. Personalized services designed to satisfy different customer demands.
| Stroke Size(mm) | X:19000 Y:7000 Z:3500 |
| 5 Axis Working Size(mm) | X:18000 Y:6000 Z:3100 |
| Rotary Head | CHENcan Brand |
| Spindle | Italy HITECO 15Kw Spindle |
| Spindle Speed | 24000rpm/min |
| Spindle Cone | HSK 63F |
| A Axis | ±120° |
| C Axis | ±360° |
| Control CNC | HNC |
| Tool Change | 10 Positions |
| Drive Type | X: Incline Rack & Pinion
YZ: High precision ball screws |
| Work Model | AC Servo Drive |
| Max Working Speed X/Y/Z(mm) | 40/40/10 |
| Max Rapid Speed X/Y/Z(m/min) | 60/60/20 |
| Positioning Accuracy X/Y/Z(mm/m) | 0.04/0.04/0.04 |
| Repeatability X/Y/Z(mm/m) | 0.025/0.025/0.025 |
| Work Table type | No Table |
| Air Pressure (kgf/cm2） | ≥0.08 |
| Total Power (KVA) | 42 |
| Gross Weight (T) | 30 |
| Control CNC | Siemens, Syntec |
| Spindle | From 15kw up to 42kw, 24000rpm max. |
| Spindle Head | H Type-Double Shoulder Type |
| Anti-Backlash | For X axis or all axis |
| Work Table | Cast Iron Table, Iron Table, Vacuum Table |
| Around Protection | Enclosure, Roof |
| Dust Suction System | Grids+hood |
| Vision Cameras | 2 cameras, 4 cameras |
| Tool Sensor | TSR27, NC4 |
| Probe | RMP60, RMP600 |
