- Series: FC Enclosed Series
- Model:FC5030
- Category:5 Axis CNC Center
- Brand:CHENcan
- Condition:NEW
- H.S.Code:84659900
- Assistance: T: +86 18763926336
1. CHENcan FC Series 5 axis CNC Router for kinds trimming of plastic and composite materials components be designed to meet the high volume production needs of kinds plastic and composite materials components used in different industries.

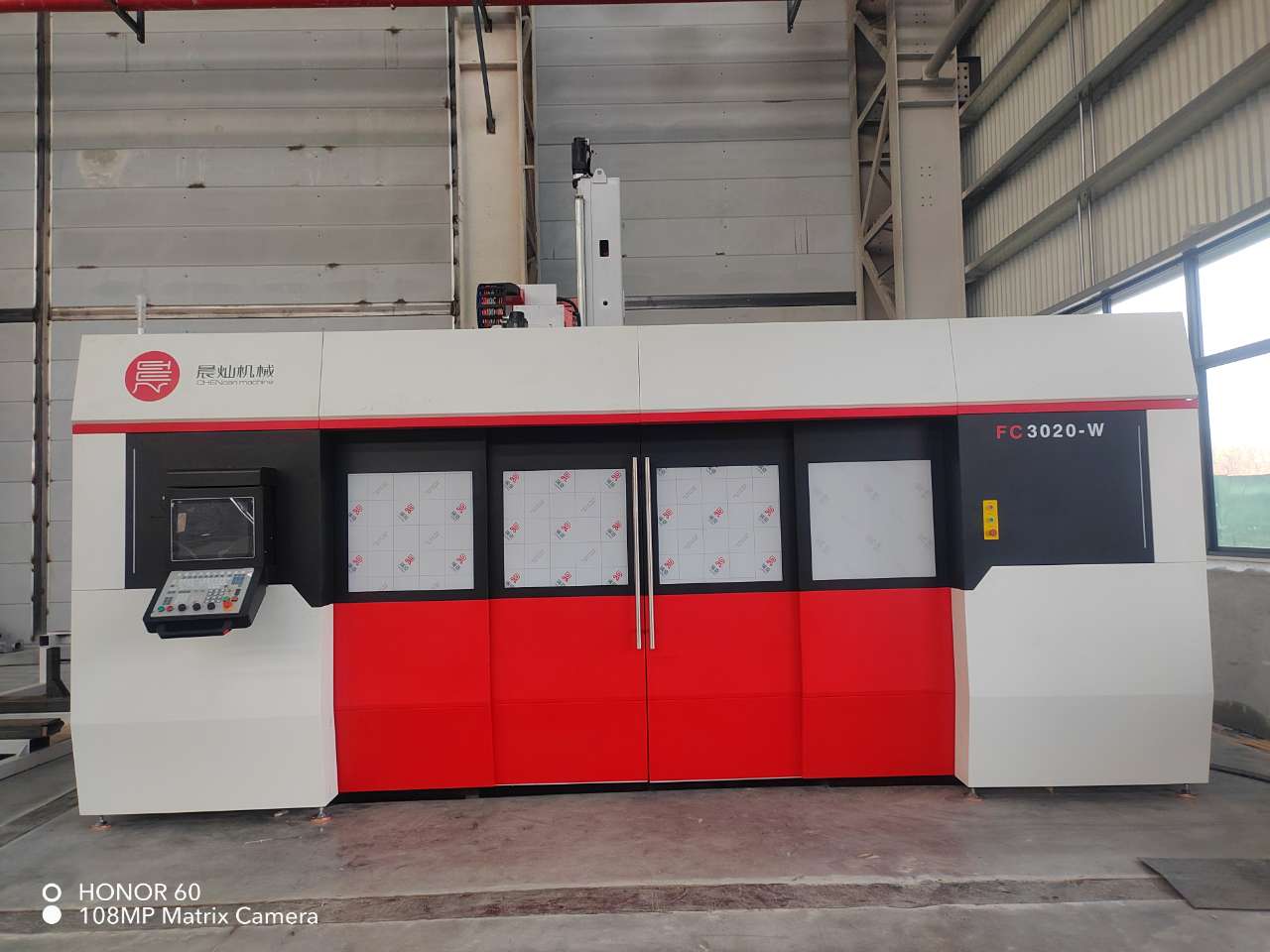

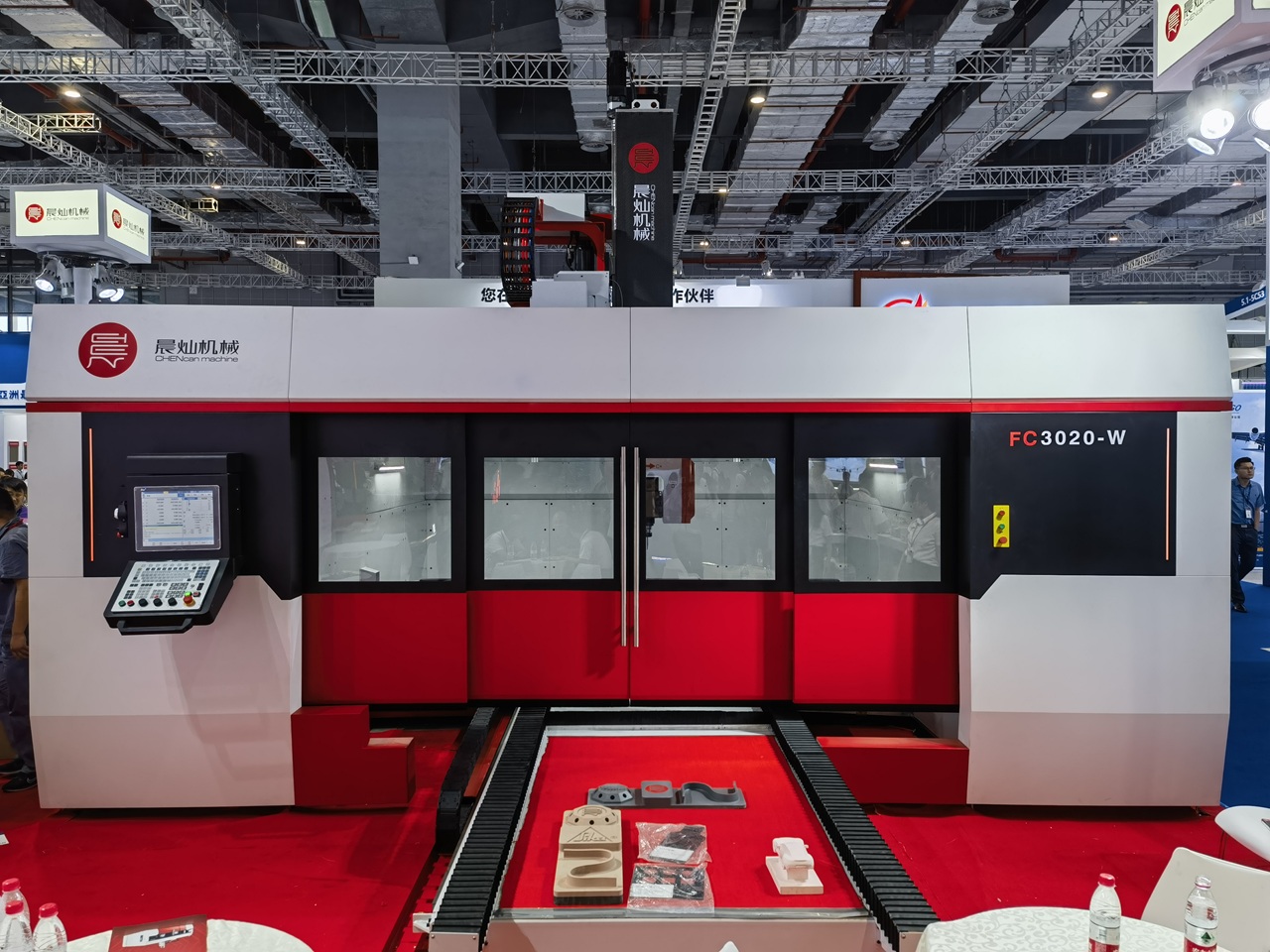

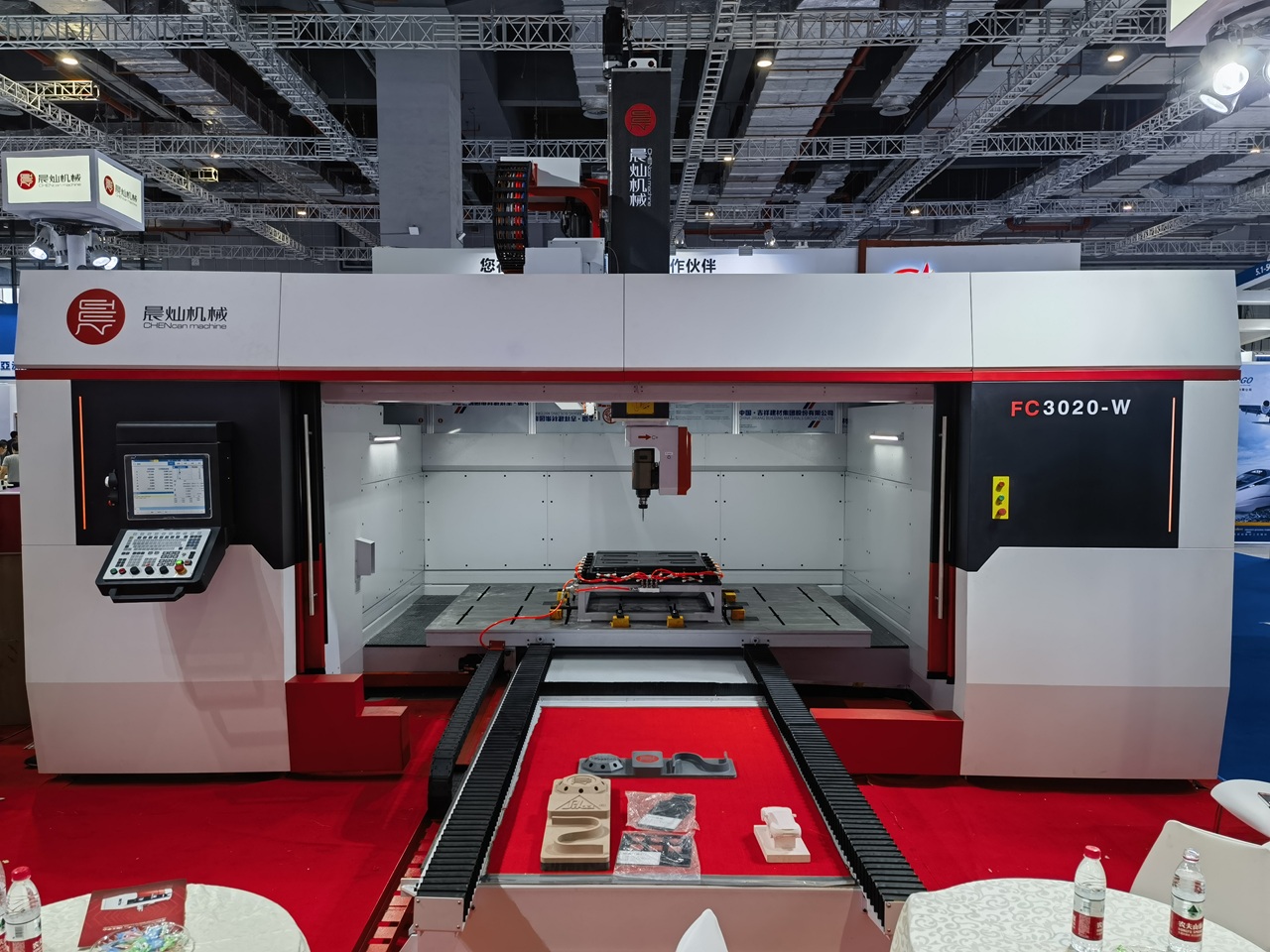

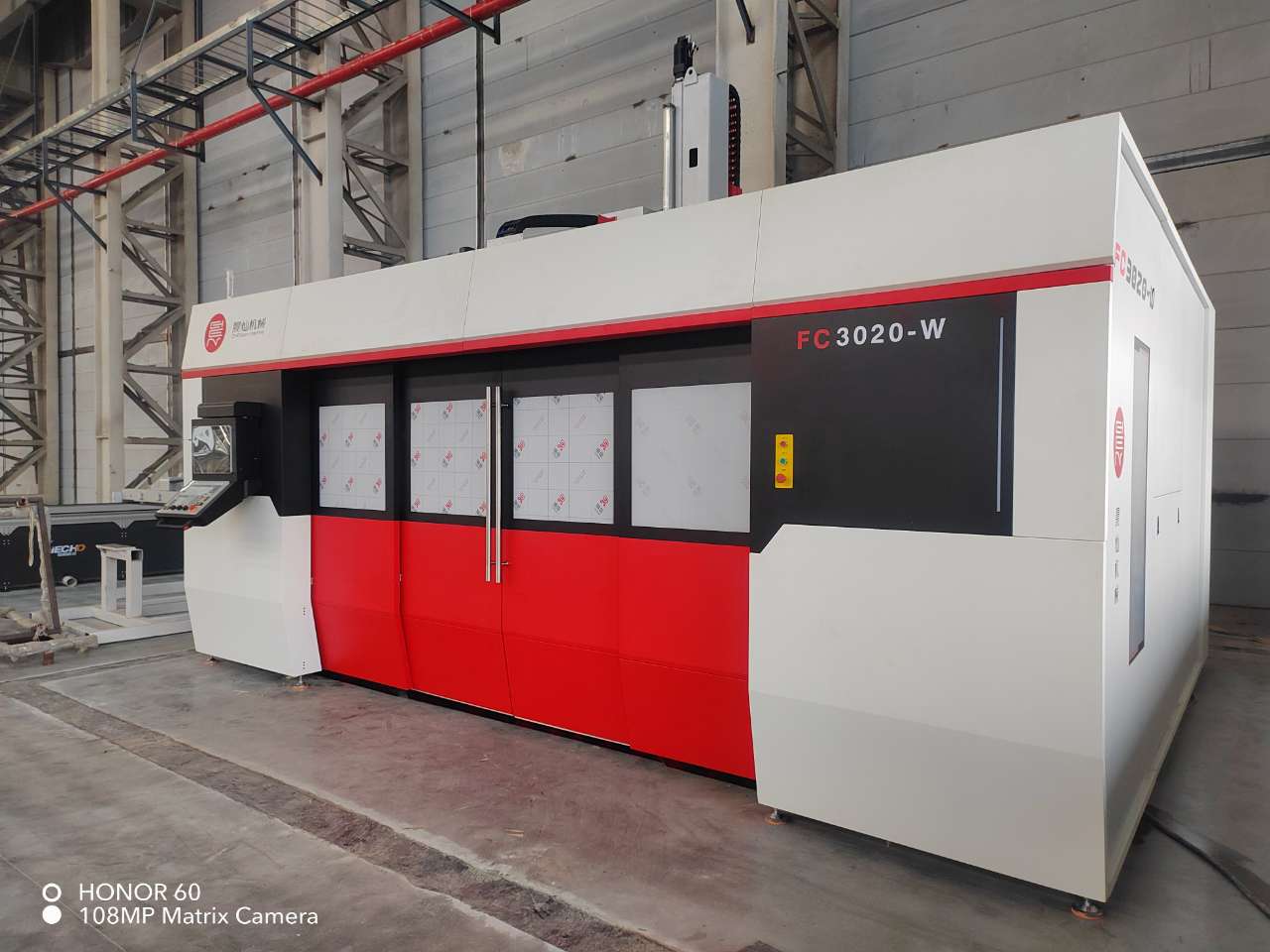

2. The FC Series 5 axis CNC Router with enclosed and gantry move design for a good performance: all-round protection, high machining speed which does not effect the cutting and trimming quality, ensuring maximum productivity.
3. Could choose customize the part fixture system, reducing change parts time to almost zero.
| Stroke Size(mm) | X:5000 Y:3000 Z:1200 |
| 5 Axis Working Size(mm) | X:4200 Y:2600 Z:800 |
| Rotary Head | CHENcan Brand |
| Spindle | Italy HITECO 15Kw Spindle |
| Spindle Speed | 24000rpm/min |
| Spindle Cone | HSK 63F |
| A Axis | ±120° |
| C Axis | ±360° |
| Control CNC | HNC |
| Tool Change | 8 or 16 Positions |
| Drive Type | XYZ: High precision ball screws |
| Work Model | AC Servo Drive |
| Max Working Speed X/Y/Z(mm) | 20/20/10 |
| Max Rapid Speed X/Y/Z(m/min) | 50/50/18 |
| Positioning Accuracy X/Y/Z(mm/m) | 0.05/0.04/0.03 |
| Repeatability X/Y/Z(mm/m) | 0.025/0.025/0.02 |
| Work Table type | Iron Table with T slot |
| Air Pressure (kgf/cm2） | ≥0.08 |
| Dust Suction System | Grids+hood |
| TMax Table Load (kgs) | 7500 |
| Layout Size (mm) | 8200*5750*4550 |
| Control CNC | Syntec |
| Work Table | Vacuum Table |
| Vision Cameras | 2 cameras, 4 cameras |
| Tool Sensor | TSR27, NC4 |
| Probe | RMP60, RMP600 |
