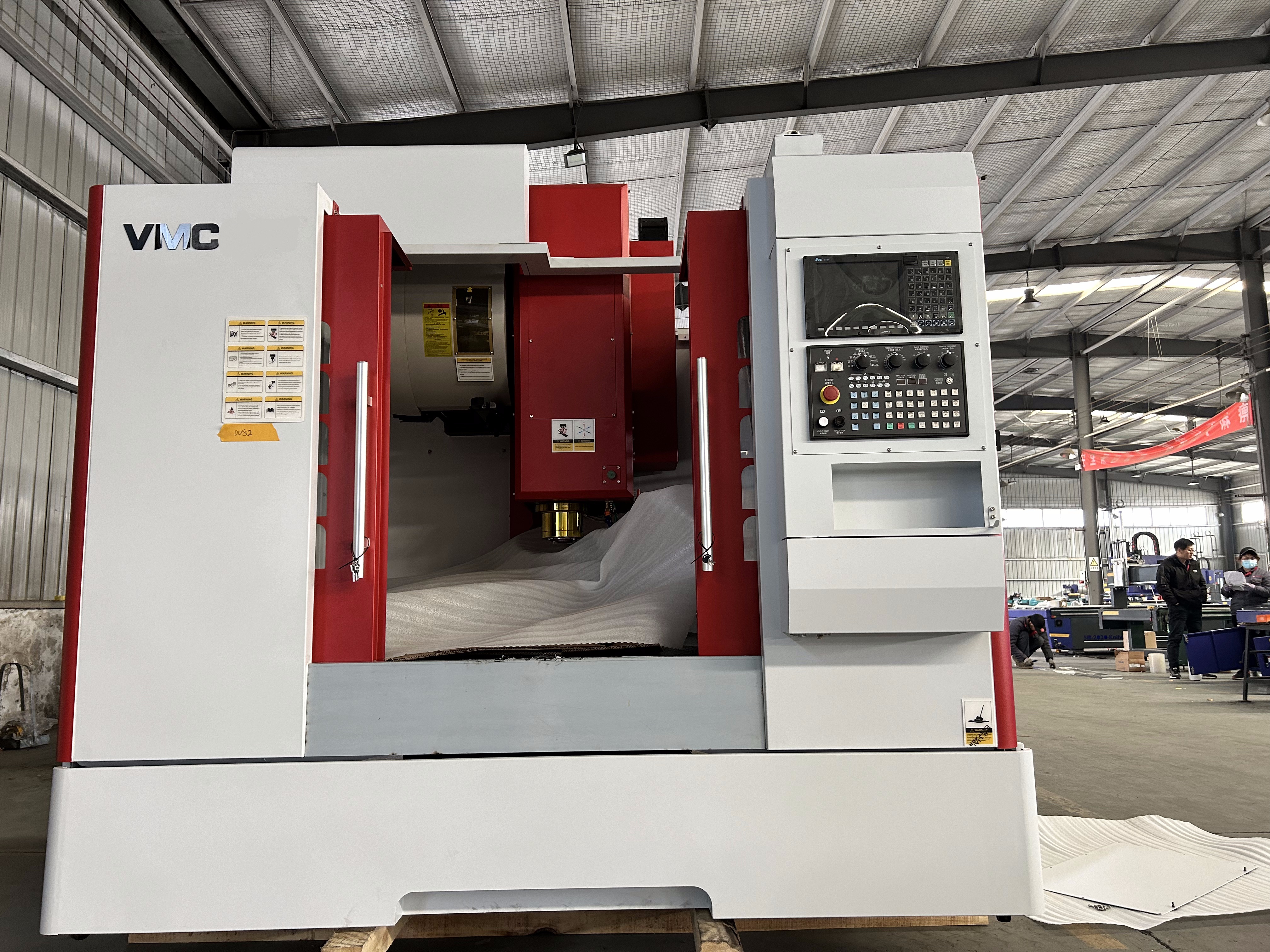

VERTICAL METAL PROCESSING CNC MACHINE CENTER
Product Introduction：
VMC650 machining center by the bed, bed, head box and other integral casting, quenching refining; to ensure the long-term use of machine tools. The optional oil cooling mode of the main shaft oil cooling, to avoid the long-term high speed operation of the main shaft bearing damage, prolong the service life of the main shaft.
Details：
VMC650 machining center by the bed, bed, head box and other integral casting, quenching refining; to ensure the long-term use of machine tools. The special design of the installation position of the independent tool magazine avoids the influence of the unilateral force deformation of the column on the geometric accuracy.
| Items | Specification |
| Model | VMC 650 |
| worktable size | 800*400mm
|
| Max worktable load | 500kgs |
Spindle speed
| 8000-12000rpm |
Spindle taper
| BT40 |
| Guide rail | Linear |
Feeder speed
| 10000mm/min |
| Tool magazine type | Arm |

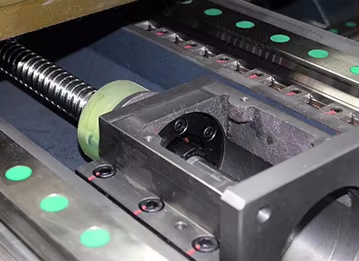

Linear guide ways and ball screws
Taiwan P-grade high precision linear guide ways and Taiwan C3 grade precision ball screws.

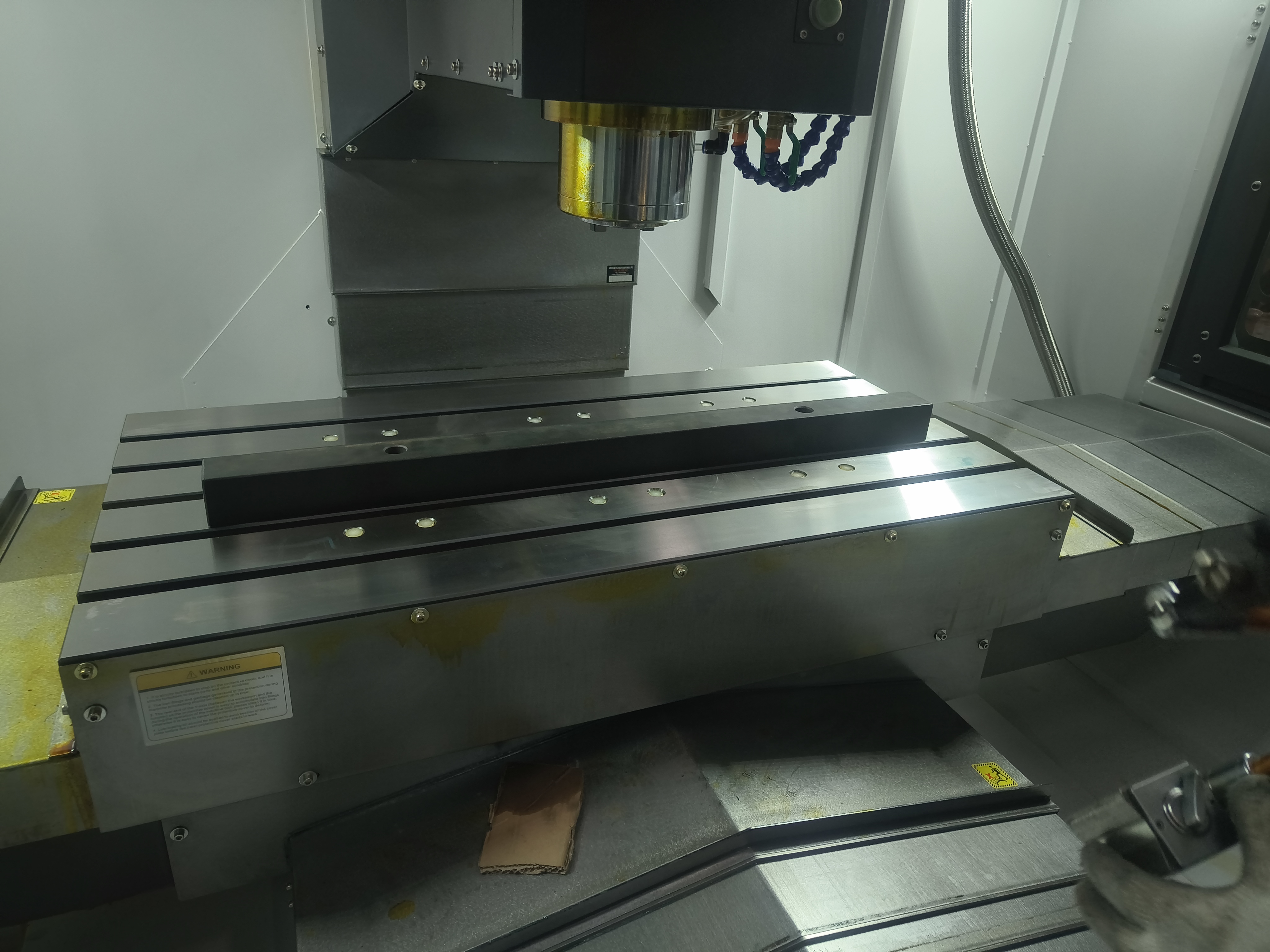

Worktable and spindle
The double T-shaped super-wide structure extends the connect span and enhances the torsional strength ensure fast and stable.
The connection ratio between the spindle head and the column is appropriate, providing stable support and excellent processing stability

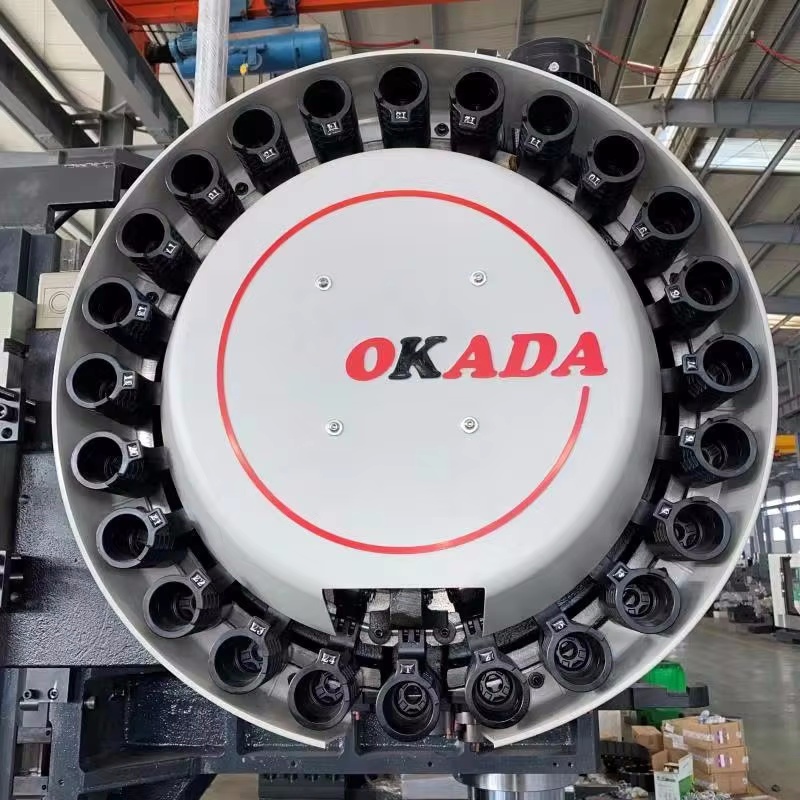

TAIWAN ATC
Taiwan Okada 24 arm type tool magazine, fast tool changer and large tool magazine capacity.

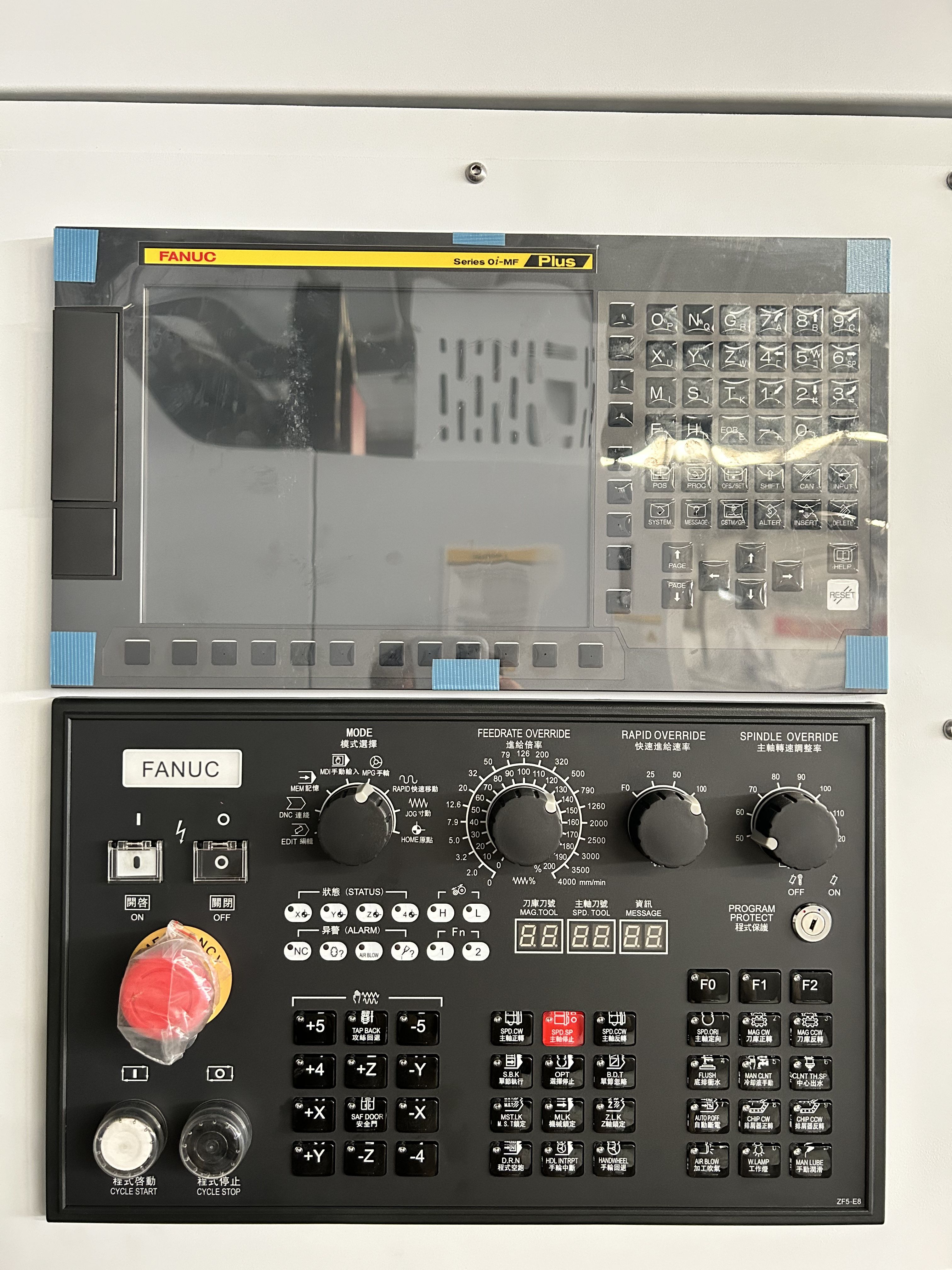

Control system
Optional:HNC, FANUC,SIEMENS OR OTHER GOOD QUALITY CONTROLLER
