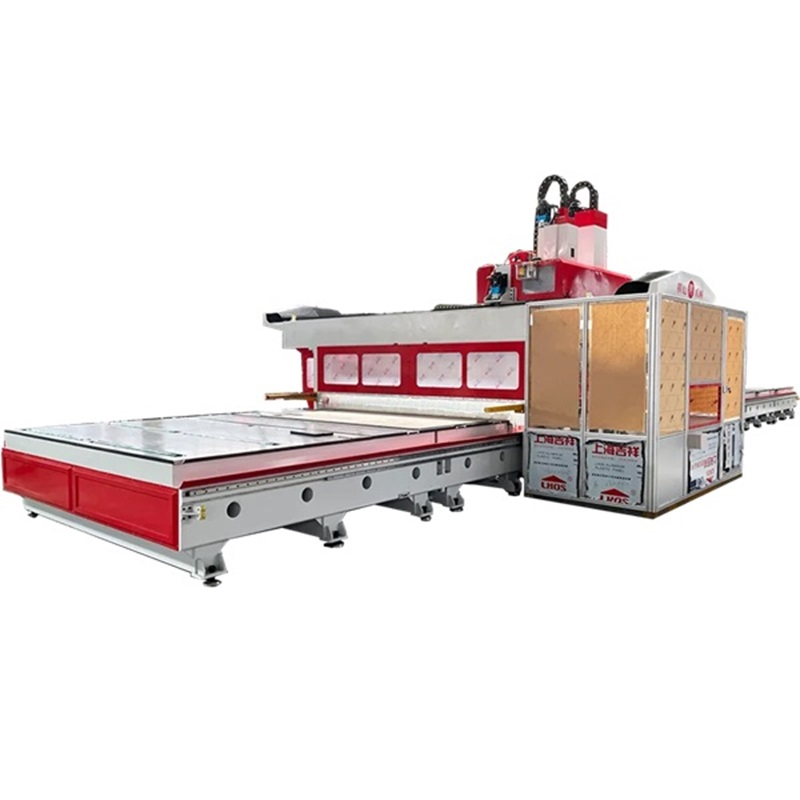

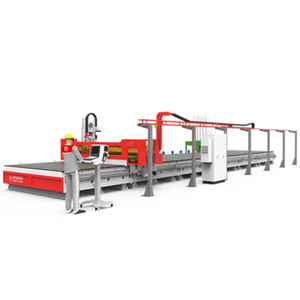

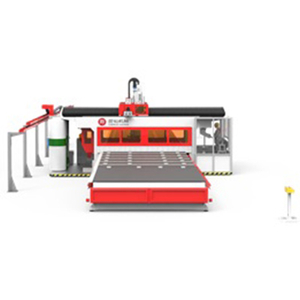

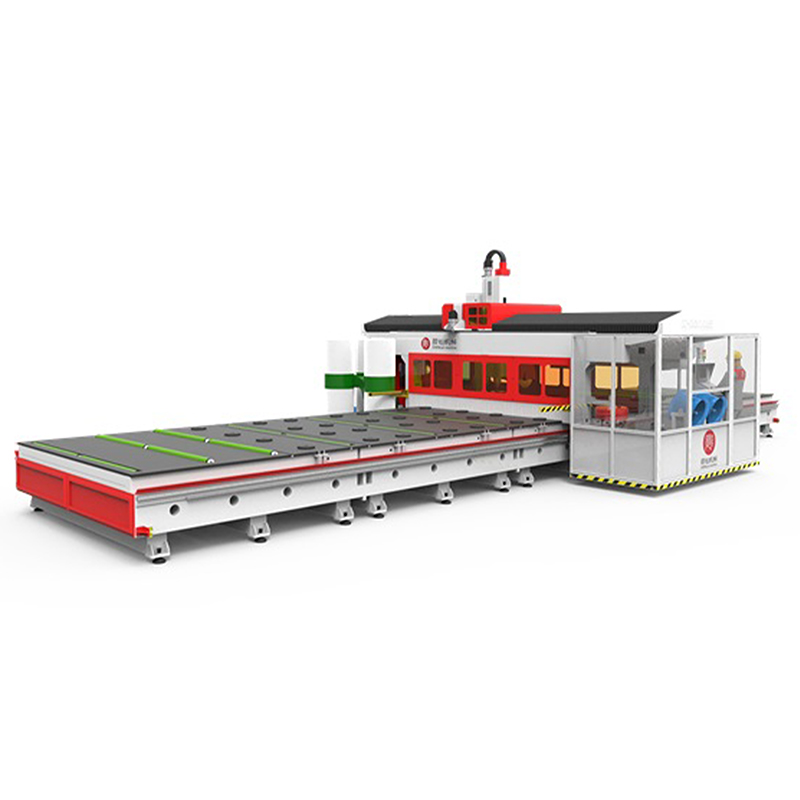

Modular Wall CLT Panels Nesting Cutting Machining Router Cnc

Modular Wall CLT Panels Nesting Cutting Machining Router Cnc

Minimum order quantity: one unit
Spindle Power:Taiwan mechanical spindle
Operating system:Taiwan SYNTEC
after-sales service：Overseas after-sales service；24 hours online service

Quantity:
Availability:





Inquire Add to Basket

Model:
GM3017
Brand:
CHENcan

Product Description

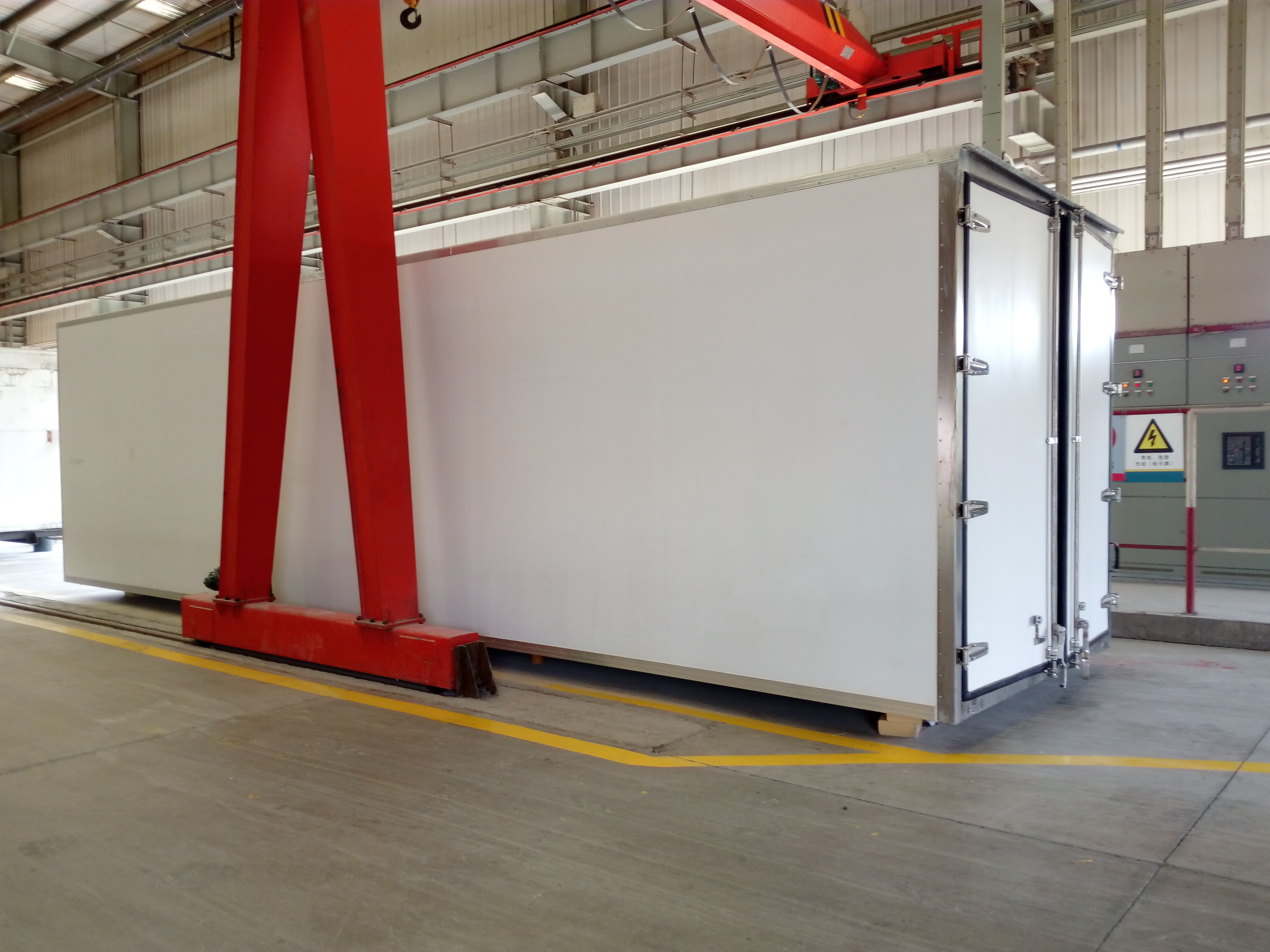

The portfolio comprises machines for machining of different materials such as e.g. wood, aluminium, plastics, composites and sandwich panels. It is used very successfully in a wide variety of industries: Reefer Truck, Motor Home, Fast Deploy Military Units, Vehicle, caravan and waggon construction, prefabricated house building, and also Plexiglas and sheet metal working are just a few examples. Specially developed clamping fixtures, handling systems and the networking of production lines guarantee both competition advantages and an excellent price/performance ratio.

Performs clean cuts of straight line in any angle or tilt, mounted on second gantry.

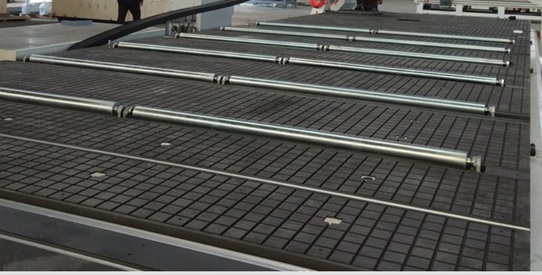

Air-piston retractable rollers. The rollers will rise up for easier material loading / unloading, and retract for vacuum gripping.

H466801279831488e99c8a887081e9166r

图层-9

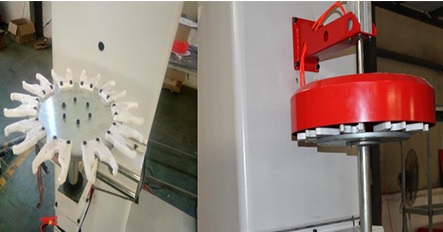

Machining with automatic tool changing and calibrating provides true autonomous processing of workpiece from start to finish in just one setup.

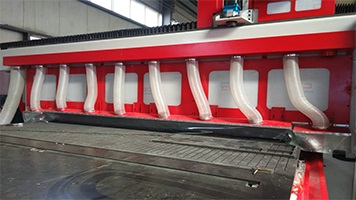

High power dust collecting system provides excellent control of dusts generated by the spindle.

Product Parameters

Model	GM3017AH5
Effective working size	X:3000(mm)
	Y:17000(mm)
	Z:350(mm)
	Five-axis saw	A:0-90° C:±360° infinitely variaable angle
Machine structure	Integral steel structure,sectional combined table,frame type gantry structure,aging treatment.
Table structure	Vaccum table Auxiliary device:T-slot,pneumatic lifting roller,mechanical clamping device for pressure plate bolt.
Transmission Type	Taiwan HIWIN H35 linear guide
Operating system	Taiwan SYNTEC 200-MA-E control system
Spindle power	Taiwan mechanical spindle
Tool holder modle	BT40 holder
Positioning accuracy	±0.1mm
Repositioning accuracy	±0.05mm
Power,voltage,air pressure	Total machine power 50Kw Voltage AC380V/50Hz Cylinder atmospheric pressure≥6.5kgf/cm²

Application Video

Product Applications

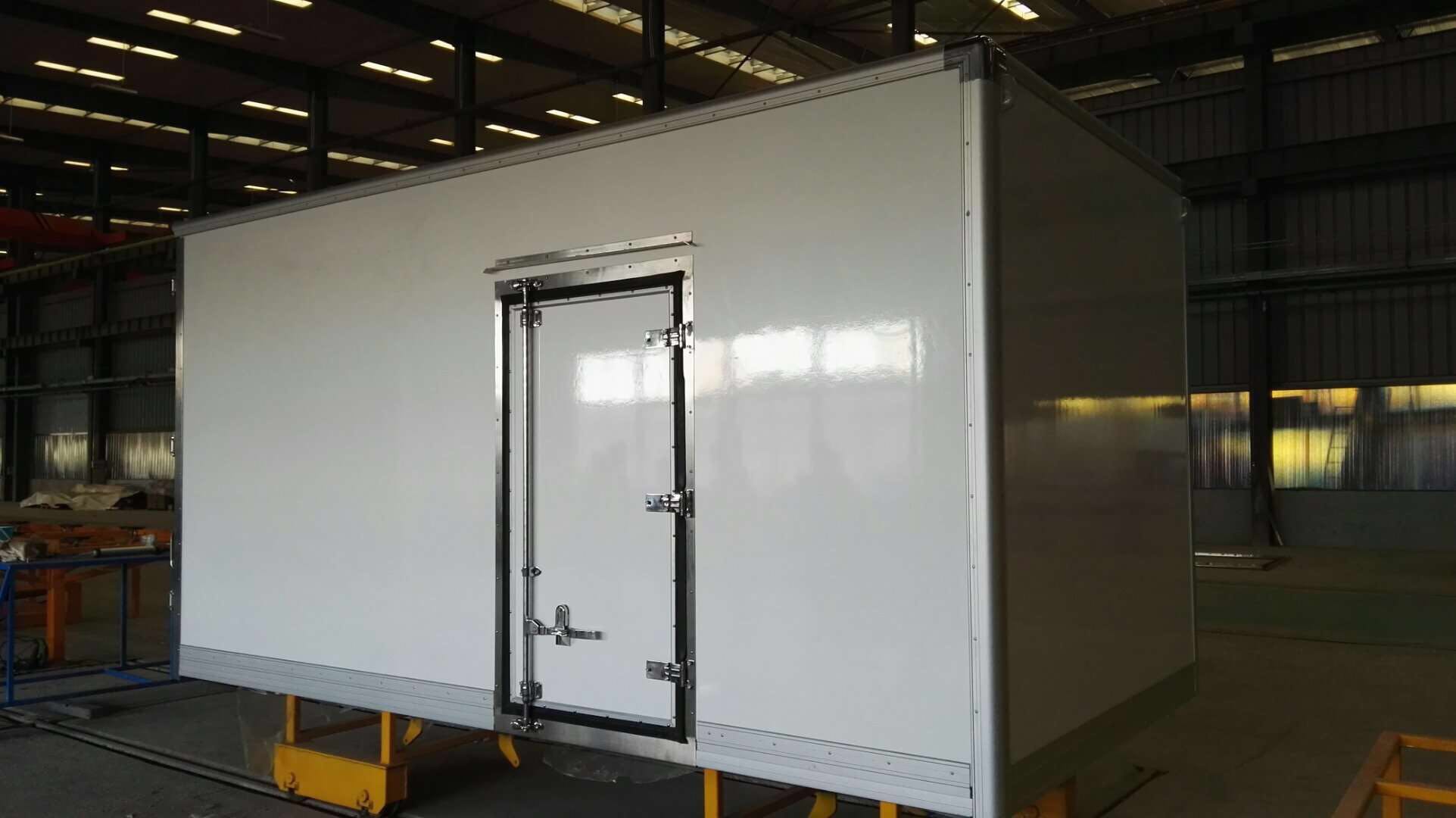

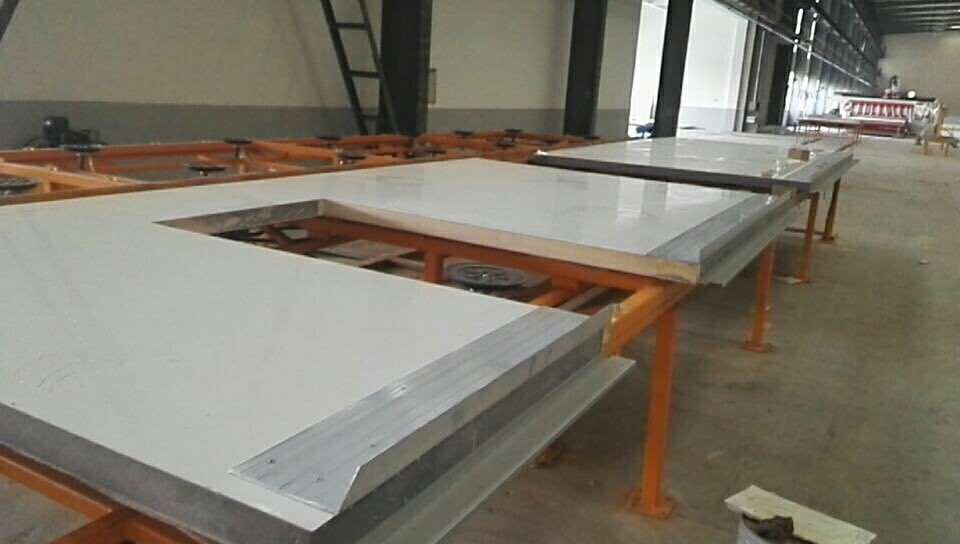

This machine can do drilling, cutting, milling, engraving and slotting. It can realize linear cutting, curve cutting, drilling, milling, trimming and chamfering. It can be used for the contour cut of the heat-insulating composite sheet, various holes (cabin doors, windows, passenger doors, connecting holes), the processing shape of the sinking groove, and can also be used for the interior parts of the car (cabinet door, cabinet cabinet, various Processing shape of the slab, toilet bathroom interior wall, etc.
