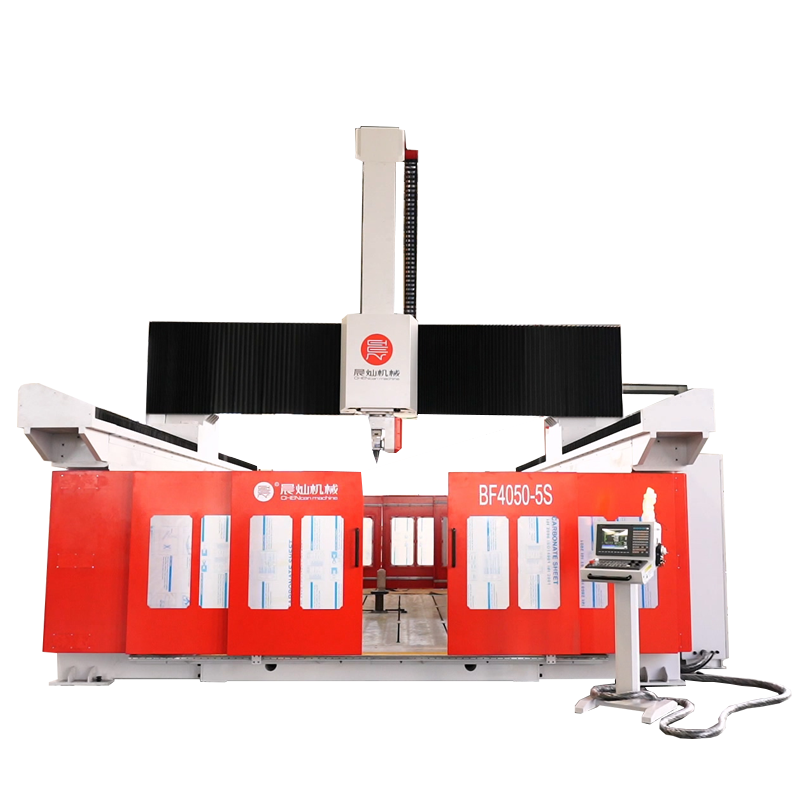

SF4050B-5S
1. High Accuracy 5 Axis Mould Machining of SF Gantry Move Series be designed to meet the produciton needs of the automotive, aeronutical, and marine sectors, Sanitary Ware, and composite components.
2. The SF Gantry Move Series models with heavy duty stucture and high accuracy ball screws for a good performance: high efficiency, short machining times, high quality surface finish, rigidity over time and long life time.
3. CHENcan sefl-engineered 5 axis rotary head combines powerful troque with exceptional rotational speed. Utilizing imported reduction gears and air braking system, it maintains precision for extended operation.
Industry
Automotive
Aerospace
Marine
Railway
Patterns and Moulds
Sanitary Ware
Material
Wood, MDF, PVC, Foam
Composites
Epoxy, Putty
FRC, GRC
Resins
Light Alloys
| Stroke Size(mm) | X:5000 Y:4000 Z:2000 |
| 5 Axis Working Size(mm) | X:4000 Y:3000 Z:1600 |
| Spindle | Italy HITECO 15Kw Spindle |
| Spindle Speed | 24000rpm/min |
| Spindle Cone | HSK 63F |
| A Axis | ±120° |
| C Axis | ±360° |
| Control CNC | HNC |
| Tool Change | 8 Positions |
| Drive Type | XYZ: High precision ball screws |
| Work Model | AC Servo Drive |
| Max Working Speed X/Y/Z(mm) | 40/40/10 |
| Max Rapid Speed X/Y/Z(m/min) | 60/60/20 |
| Positioning Accuracy X/Y/Z(mm/m) | 0.04/0.04/0.04 |
| Repeatability X/Y/Z(mm/m) | 0.025/0.025/0.025 |
| Work Table type | Iron Table with T slot |
| Air Pressure (kgf/cm2） | ≥0.08 |
| Total Power (KVA) | 57 |
| Gross Weight (T) | 30 |
| Control CNC | Siemens, Syntec |
| Spindle | From 15kw up to 42kw, 24000rpm max. |
| Spindle Head | H Type-Double Shoulder Type |
| Anti-Backlash | For X axis or all axis |
| Work Table | Cast Iron Table , Vacuum Table |
| Around Protection | Enclosure, Roof |
| Dust Suction System | Grids+hood |
| Vision Cameras | 2 cameras, 4 cameras |
| Tool sensor | TSR27, NC4, |
| Probe | RMP600, RMP 600 |
