- Series: PC Economy Series

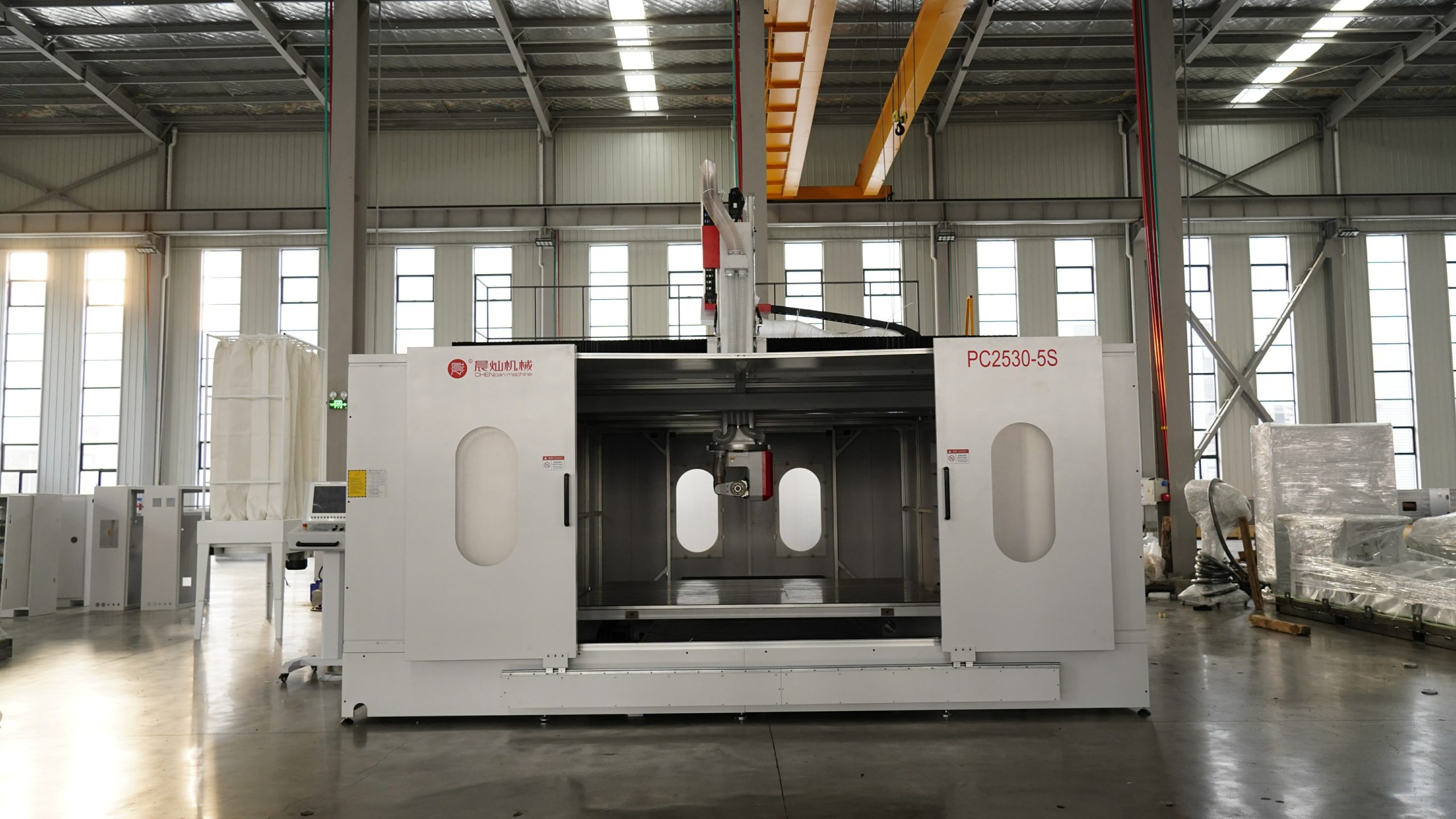

- Model:PC2530
- Category:5 Axis CNC Center
- Brand:CHENcan
- Condition:NEW
- H.S.Code:84659900
- Assistance: T: +86 18763926336

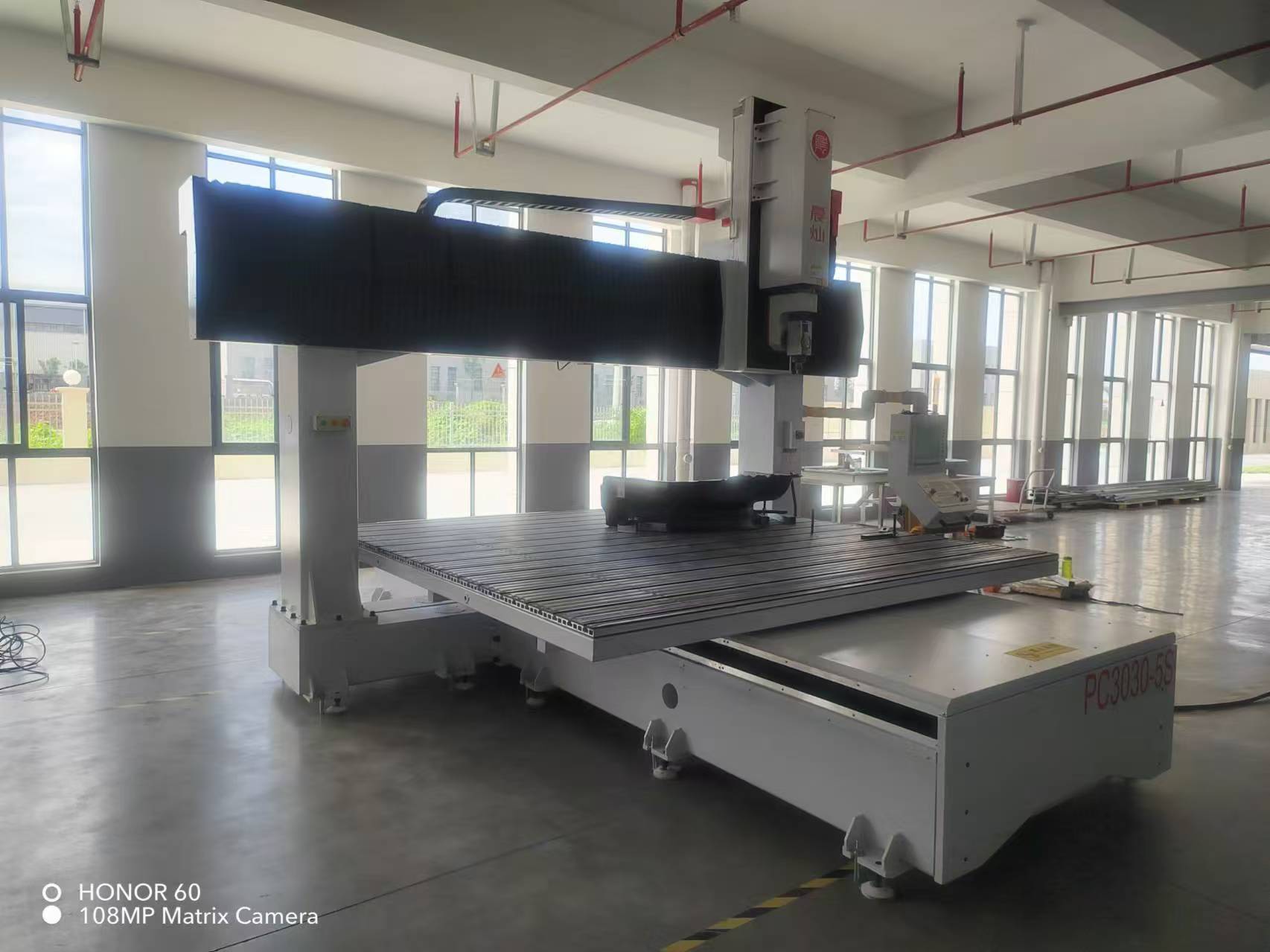

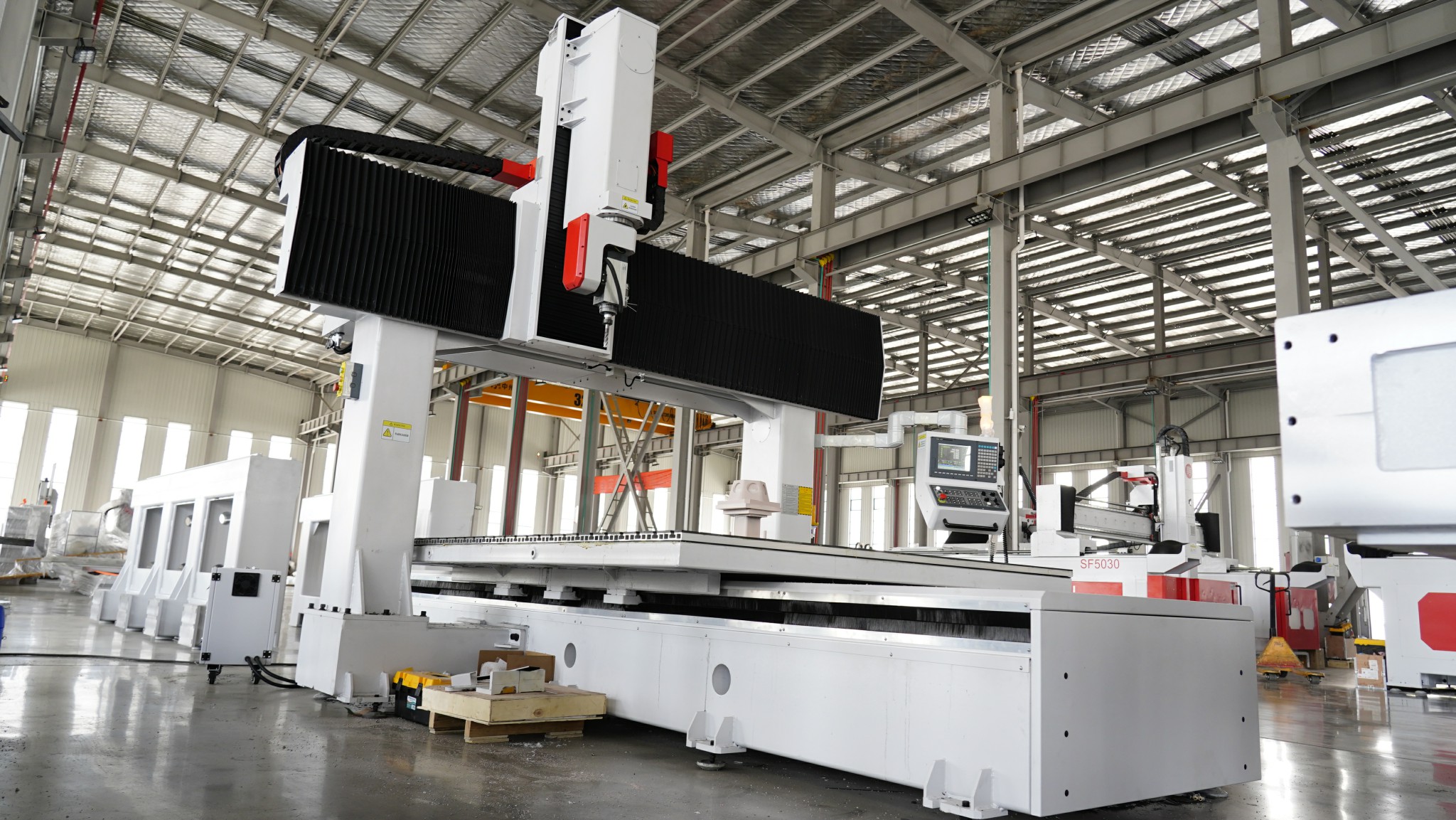

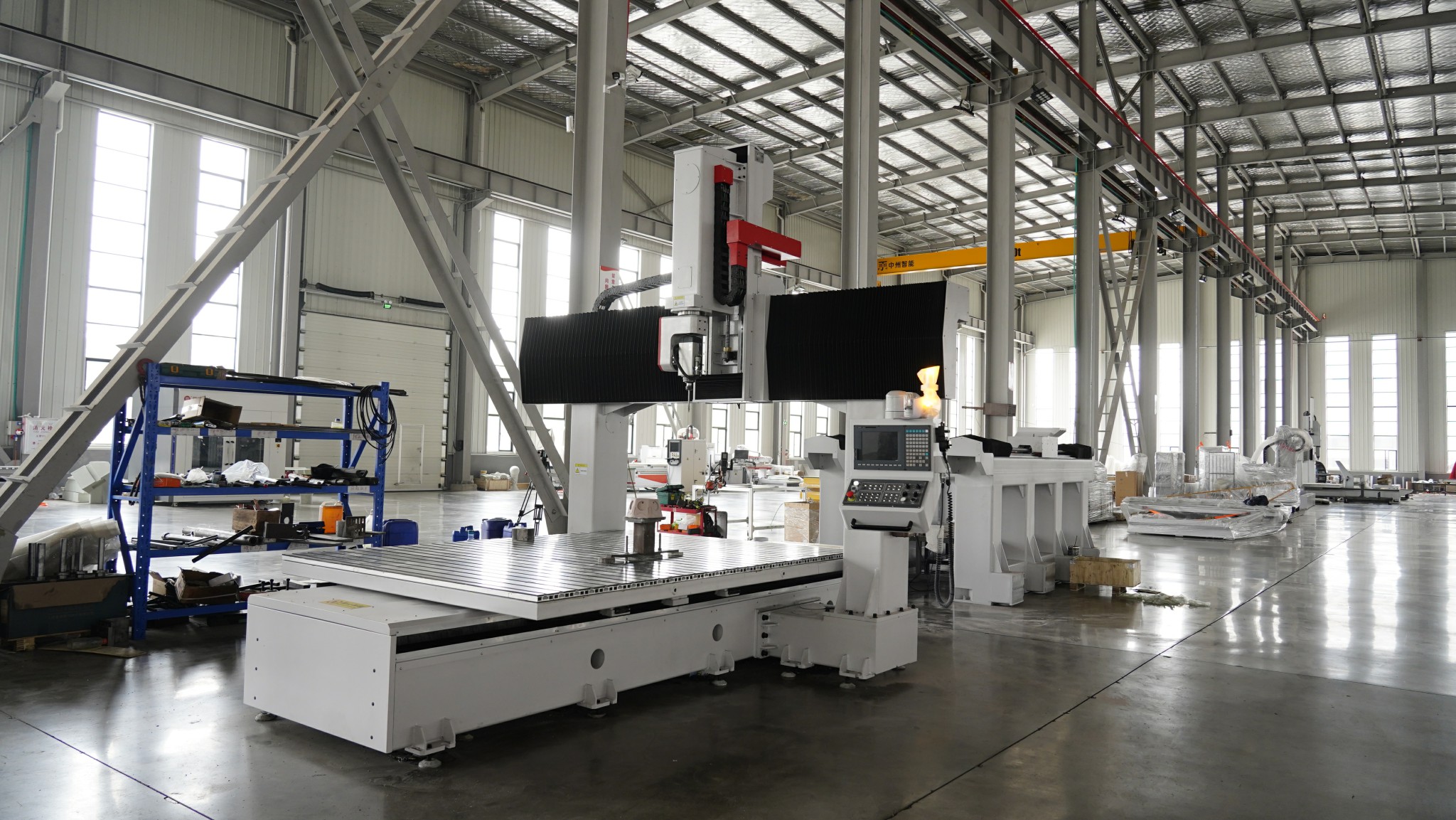

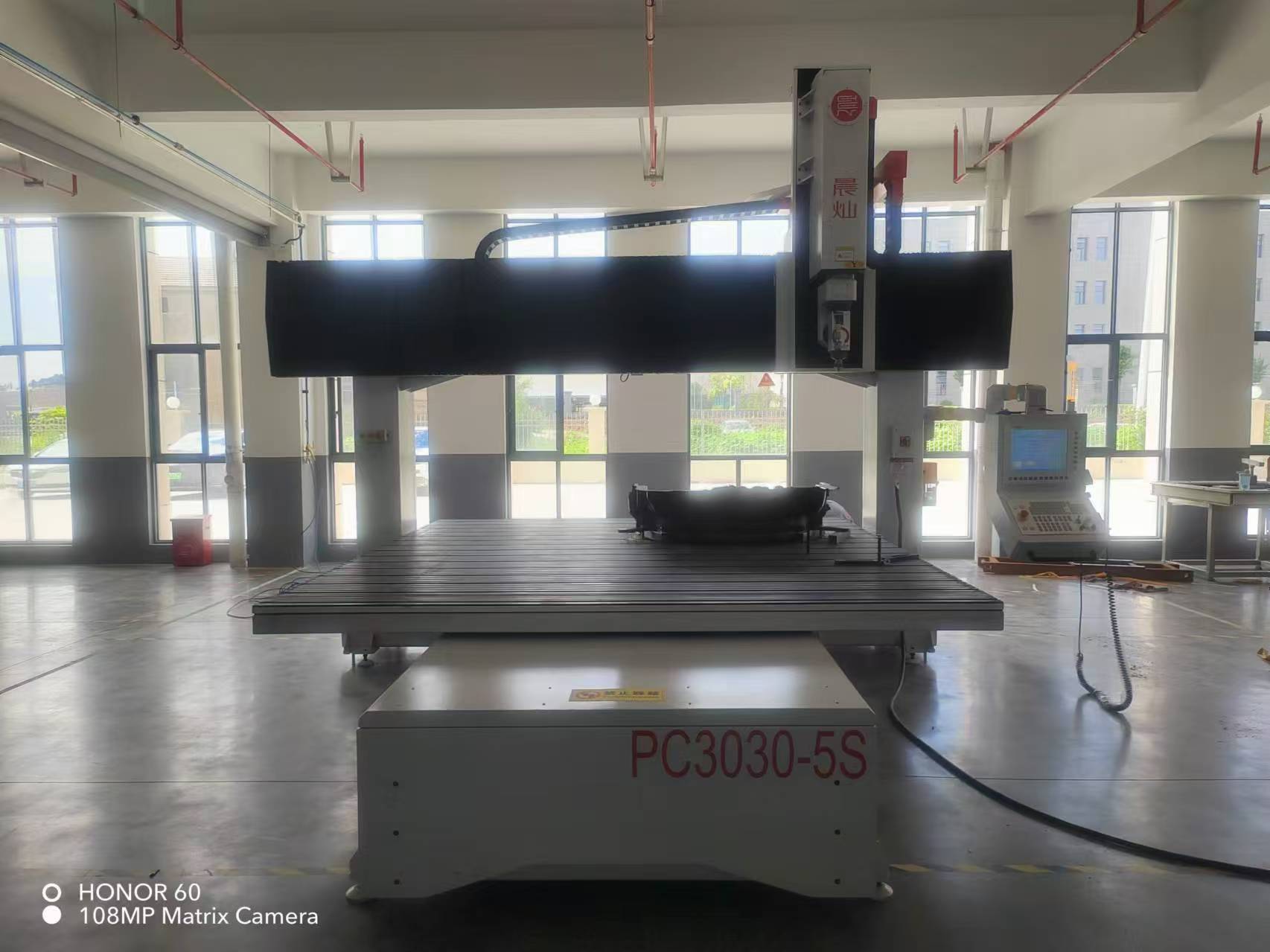

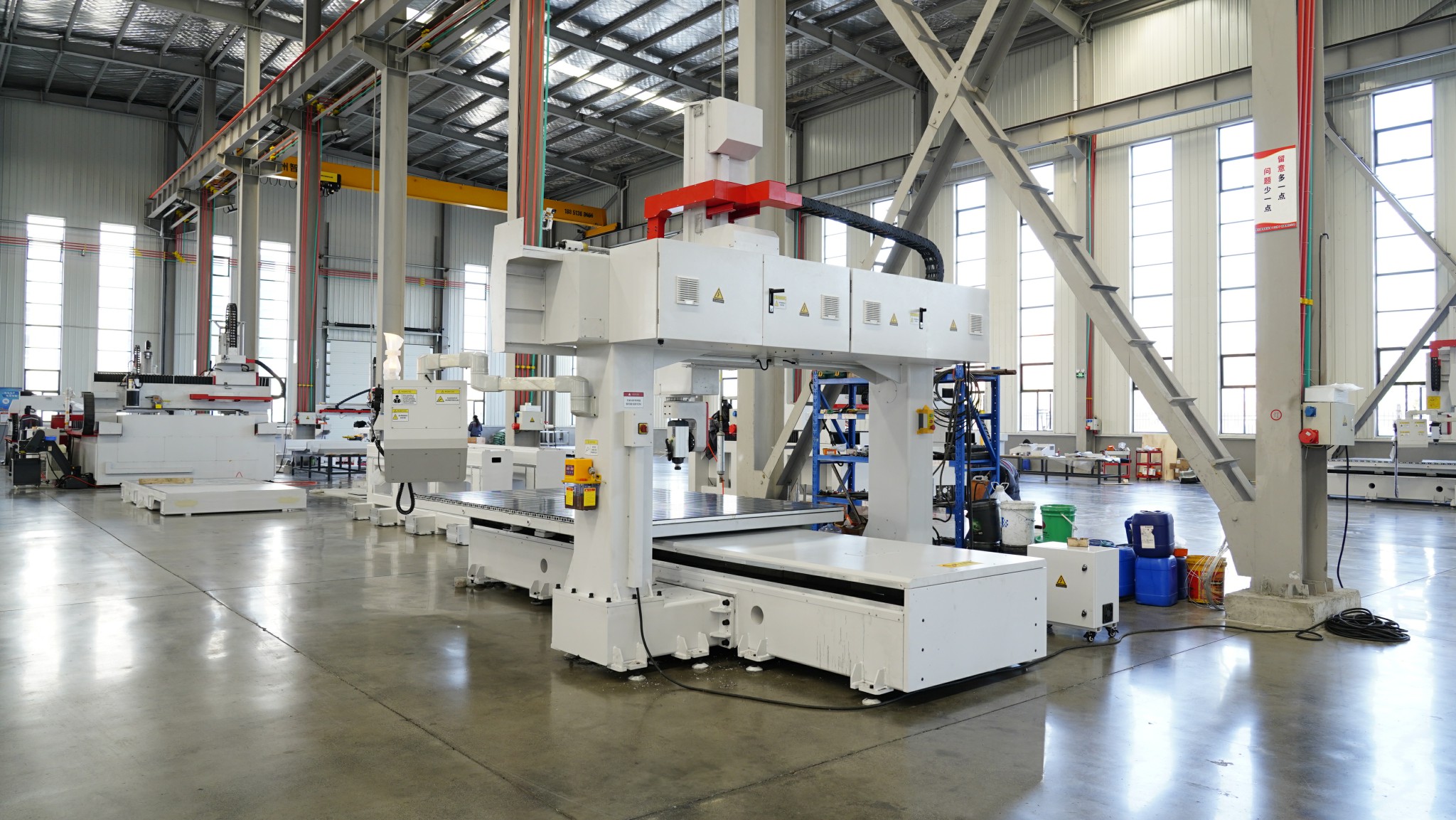

1. CHENcan PC Economy Series 5 Axis Gantry Machining for Mold Making Milling Machine for Marine be designed to meet the production needs of kinds plastic and composite materials components used in different industries.
2. The PC Economy Series 5 axis cnc router with table move design for the high machining speed with competitive cost, which does not effect the cutting and trimming quality, ensuring maximum productivity.
3. Could choose customize working size with low price.
4. RTCP function as optional.
| Stroke Size(mm) | X:3000 Y:3000 Z:1000 |
| 5 Axis Working Size(mm) | X:3000 Y:3000 Z:800 |
| Rotary Head | CHENcan Brand |
| Spindle | Italy HSD 6Kw Spindle |
| Spindle Speed | 24000rpm/min |
| Spindle Cone | ER32 |
| A Axis | ±120° |
| C Axis | ±360° |

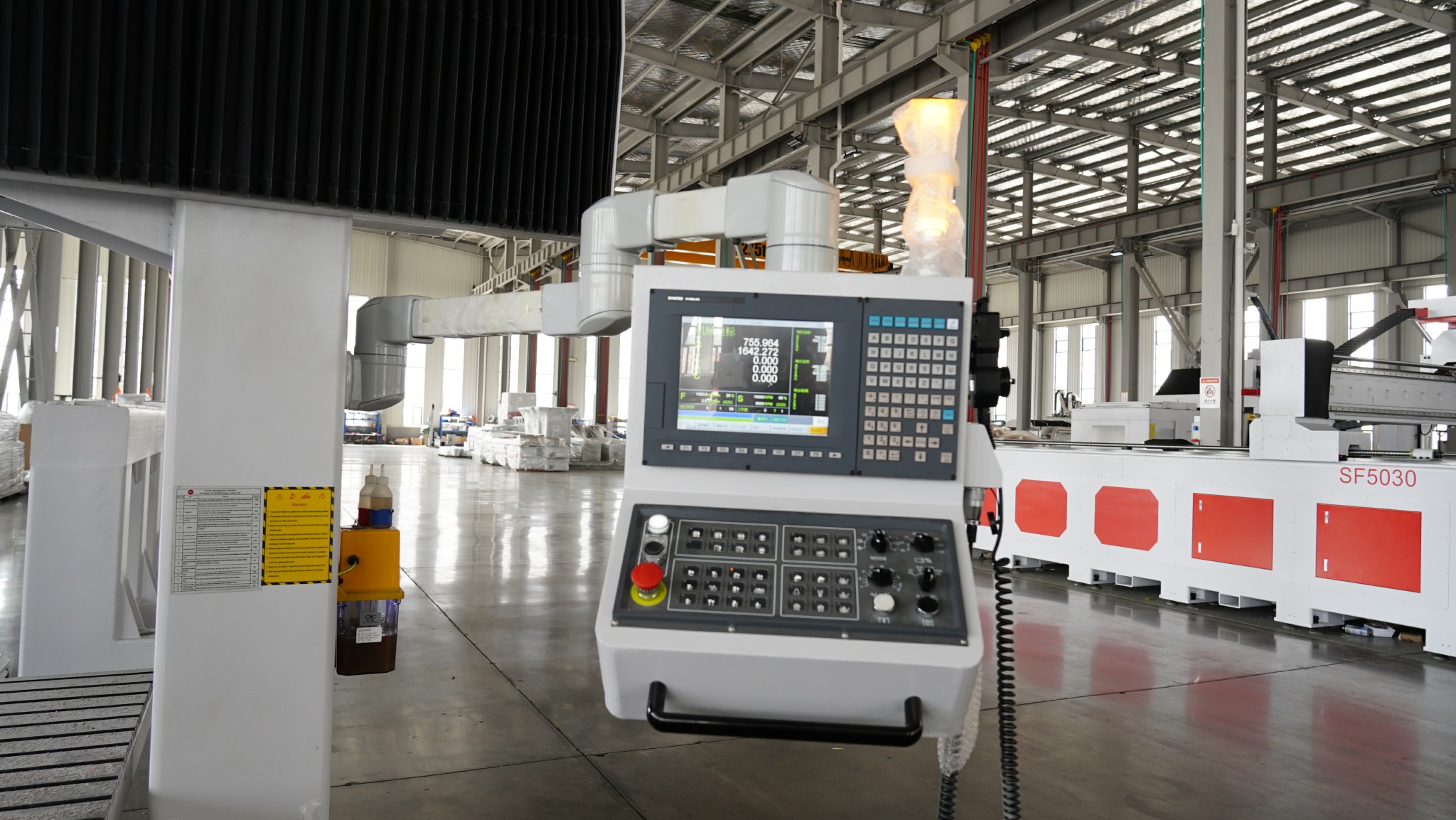

| Control CNC | HNC |
| Tool Change | No |
| Drive Type | XYZ: High precision ball screws |
| Work Model | AC Servo Drive |
| Max Working Speed X/Y/Z(mm) | 15/15/10 |
| Max Rapid Speed X/Y/Z(m/min) | 30/30/15 |
| Positioning Accuracy X/Y/Z(mm/m) | 0.1/0.1/0.08 |
| Repeatability X/Y/Z(mm/m) | 0.05/0.05/0.04 |

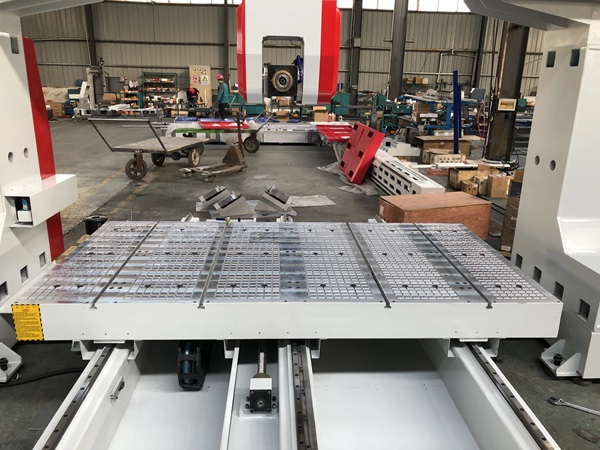

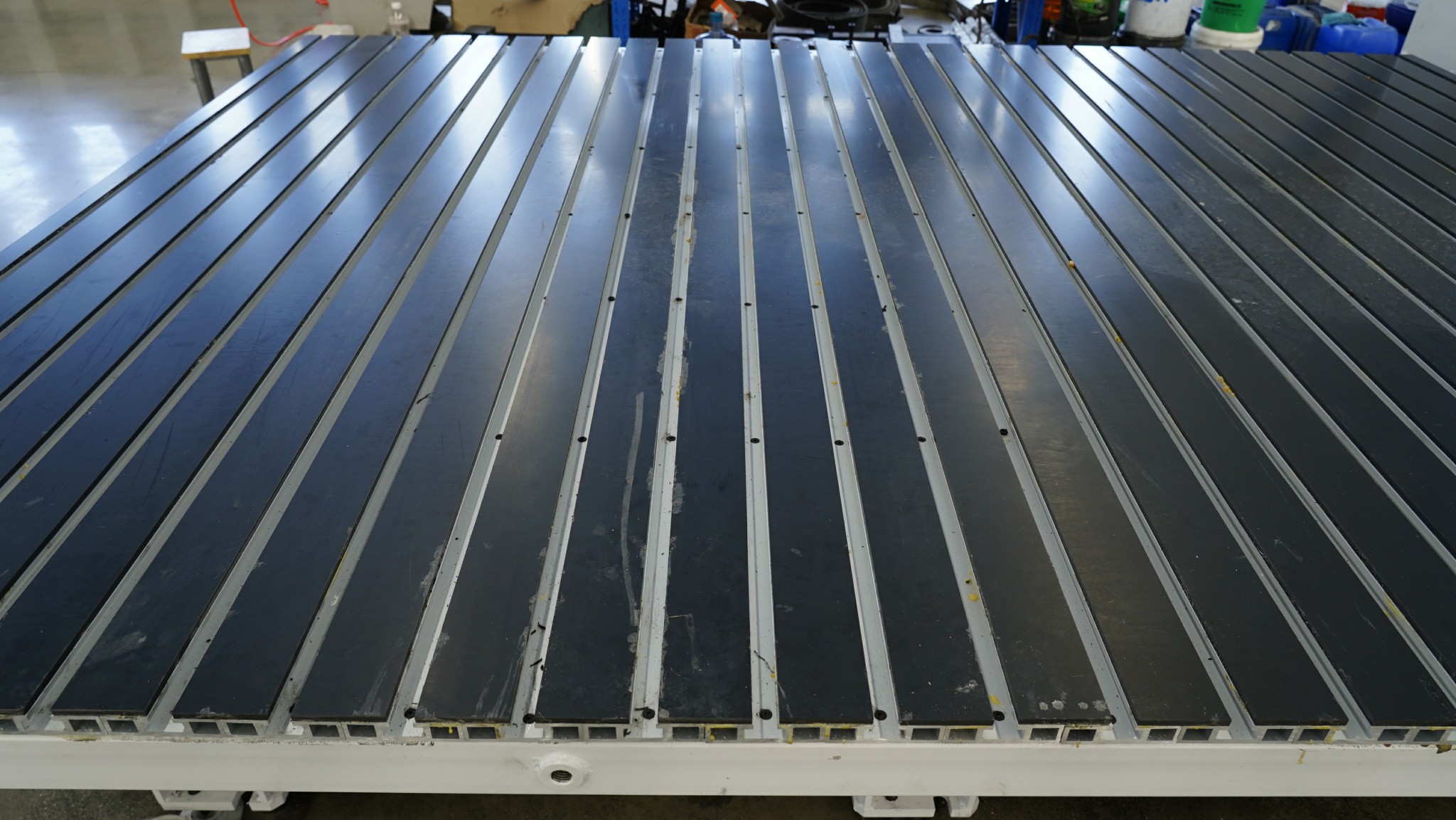

| Work Table type | Aluminum Table with T slot |
| Air Pressure (kgf/cm2） | ≥0.08 |
| Max Table Load (kgs) | 2000 |
